• Very Low Profile − Typical Height of 0.68 mm
|
• Low Power Loss, High Efficiency
|
• Moisture Sensitivity Level 1 per J−STD−020
|
• UL Flammability 94V−0 Classification
|
• RoHS Compliant / Green Molding Compound
|
• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
|
|
| CATALOG |
SS16HE COUNTRY OF ORIGIN
|
SS16HE PARAMETER INFORMATION
|
SS16HE PACKAGING INFORMATION
|
SS16HE MANUFACTURING INFORMATION
|
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
|
PARAMETER INFORMATION
|
| type |
Schottky Diode |
| Configuration |
Single |
| Maximum DC Reverse Voltage (V) |
60 |
| Peak Reverse Repetitive Voltage (V) |
60 |
| Maximum Continuous Forward Current (A) |
1 |
| Peak Forward Voltage (V) |
0.68 |
| Peak Non-Repetitive Surge Current (A) |
25 |
| Peak Reverse Current (uA) |
50 |
| Peak Reverse Recovery Time (ns) |
8.3 (Typ) |
| Operating Junction Temperature (°C) |
-55 to 150 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
|
|

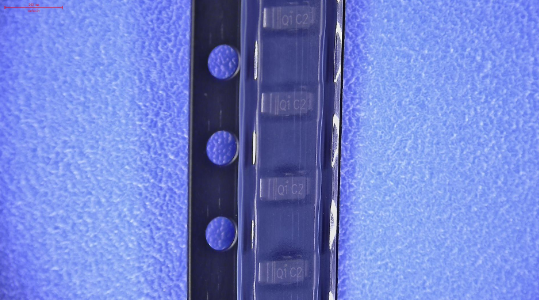

PACKAGING INFORMATION
|
| Supplier Packaging |
SOD-323 |
| Basic package types |
Lead-Frame SMT |
| Number of Pins |
2 |
| PCB |
2 |
| Ear piece |
N/R |
| Pin spacing (mm) |
N/R |
| Package length (mm) |
2.3(Max) |
| Package width (mm) |
1.4(Max) |
| Package height (mm) |
not applicable |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
0.75(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Diode Package |
| Package Series Name |
SOD |
| JEDEC |
SOD-323 |
|
|
MANUFACTURING INFORMATION
|
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal base material |
Cu Alloy |
|
|
