| CATALOG |

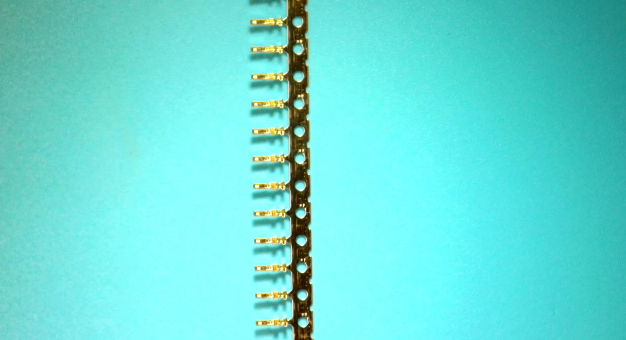

| SSHL-003T-P0.2 COUNTRY OF ORIGIN |
SSHL-003T-P0.2 PARAMETRIC INFO
|
SSHL-003T-P0.2 PACKAGE INFO
|
SSHL-003T-P0.2 MANUFACTURING INFO
|
SSHL-003T-P0.2 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Japan |
|
PARAMETRIC INFO
|
| Series Name |
SHL |
| Connector Type |
Connector Headers and PCB Receptacles |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Stamped Signal |
| Maximum Voltage Rating |
50VDC|50VAC |
| Maximum Current Rating (A) |
1 |
| Maximum Contact Resistance (mOhm) |
50 |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Tin |
| Shielded |
No |
| Wire Size (AWG) |
28-32 |
| Operating Temperature (°C) |
-25 to 105 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
105 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
4.75 |
| Product Depth (mm) |
0.8 |
| Product Height (mm) |
N/A |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Phosphor-Bronze |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Reel |
| Quantity Of Packaging |
41000 |
| Packaging Document |
Link to Datasheet |
|
