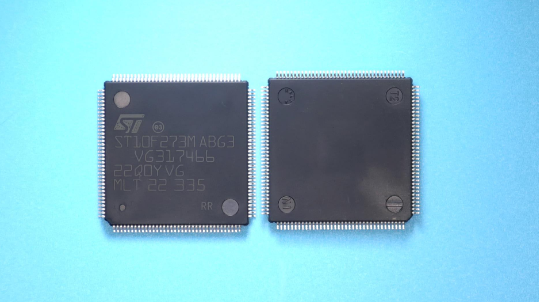

• High performance 16-bit CPU with DSP functions– 50ns instruction cycle time at 40 MHz max CPU clock– Multiply/accumulate unit (MAC) 16 x 16-bit multiplication, 40-bit accumulator– Enhanced boolean bit manipulations– Single-cycle context switching support
|
• Memory organization– 512 Kbyte on-chip Flash memory single voltage with erase/program controller (full performance, 32-bit fetch)– 100K erasing/programming cycles.– Up to 16 Mbyte linear address space for code and data (5 Mbytes with CAN or I2C)– 2 Kbyte on-chip internal RAM (IRAM)– 34 Kbyte on-chip extension RAM (XRAM)– Programmable external bus configuration and characteristics for different address ranges– 5 programmable chip-select signals– Hold-acknowledge bus arbitration support
|
• Interrupt– 8-channel peripheral event controller for single cycle interrupt driven data transfer– 16-priority-level interrupt system with 56
sources, sampling rate down to 25ns
|
| • Timers– 2 multifunctional general purpose timer units with 5 timers |
| • Two 16-channel capture / compare units |
| • 4-channel PWM unit + 4-channel XPWM |
| • 24-channel A/D converter– 16-channel 10-bit, accuracy +/-2 LSB– 8-channel 10-bit, accuracy +/-5 LSB– 4.85µs Minimum conversion time |
| • Serial channels– 2 synch. / asynch. serial channels– 2 high-speed synchronous channels– I2C standard interface |
| |
| CATALOG |
| ST10F273M-4T3 COUNTRY OF ORIGIN |
ST10F273M-4T3 PARAMETRIC INFO
|
ST10F273M-4T3 PACKAGE INFO
|
ST10F273M-4T3 MANUFACTURING INFO
|
ST10F273M-4T3 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| China |
| Malta |
| Morocco |
|
PARAMETRIC INFO
|
| Family Name |
ST10 |
| Data Bus Width (bit) |
16 |
| Device Core |
ST10 |
| Instruction Set Architecture |
CISC|RISC |
| Maximum Clock Rate (MHz) |
40 |
| Program Memory Type |
Flash |
| Program Memory Size |
512KB |
| RAM Size |
36KB |
| Maximum Expanded Memory Size |
16MB |
| Maximum CPU Frequency (MHz) |
40 |
| Number of Programmable I/Os |
111 |
| Number of Timers |
5 |
| ADC Channels |
8/8 |
| ADC Resolution (bit) |
10 |
| Number of ADCs |
Single |
| PWM |
4 |
| Watchdog |
1 |
| Special Features |
CAN Controller |
| Interface Type |
CAN/I2C |
| Programmability |
Yes |
| SPI |
0 |
| I2C |
1 |
| I2S |
0 |
| UART |
0 |
| USART |
0 |
| CAN |
2 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Automotive |
| Operating Supply Voltage (V) |
5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
144 |
| Lead Shape |
Gull-wing |
| PCB |
144 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
20 |
| Package Width (mm) |
20 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
22 |
| Package Overall Width (mm) |
22 |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BFB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
60 |
|
|
