• Supply voltage range 3.0 to 3.6 V– Limited operation possible down to 2.7 V– Maximum PA supply voltage 4.3 V– Peripheral I/O supply range 1.65 to 5.5 V
|
• Protocol support for:– ISO 18000-6C (EPC Class1 Gen2)– ISO 29143 (Air interface for mobile RFID)– ISO 18000-6A/B through direct mode
|
• DRM: 250 kHz and 320 kHz filters for M4 and
M8
|
• Integrated supply regulators
|
• Frequency hopping support
|
• ASK or PR-ASK modulation
|
• Automatic I/Q selection
|
• Phase bit for tag tracking with 8-bit linear RSSI
|
|
| CATALOG |
ST25RU3993-BQFT COUNTRY OF ORIGIN
|
ST25RU3993-BQFT LIFECYCLE
|
ST25RU3993-BQFT PARAMETRIC INFO
|
ST25RU3993-BQFT PACKAGE INFO
|
ST25RU3993-BQFT MANUFACTURING INFO
|
ST25RU3993-BQFT PACKAGING INFO
|
ST25RU3993-BQFT ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
LIFECYCLE
|
Obsolete
Apr 03,2024
|
|
PARAMETRIC INFO
|
| Module/IC Classification |
IC |
| Operation |
Read/Write |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Host Interface |
SPI |
| Minimum Operating Supply Voltage (V) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| RF Type |
UHF |
| Protocols Supported |
ISO 18000-6C(EPC Class 1 Gen 2)|ISO 18000-6A|ISO 18000-6B|ISO 29143 |
|
|
PACKAGE INFO
|
| Supplier Package |
VFQFPN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Fine Quad Flat Package No Lead |
| Package Family Name |
QFP |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Lead Finish(Plating) |
Matte Sn |
| Shelf Life Period |
2 Years |
|
|
| PACKAGING INFO |

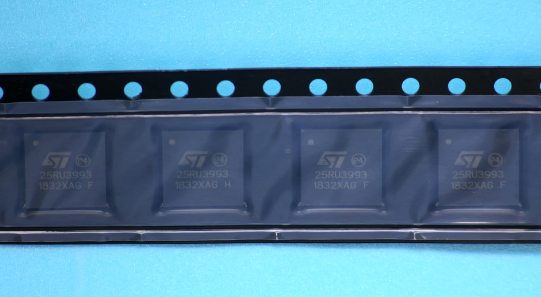

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

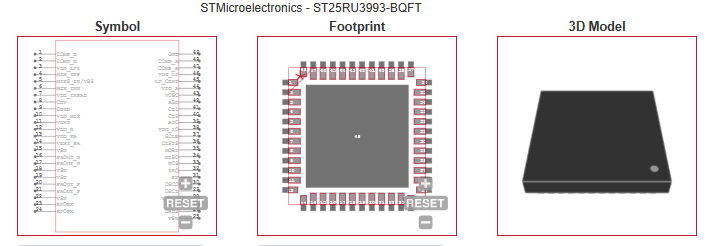

| ECAD MODELS |
 |
| |
