• STMicroelectronics® positioning receiver with
48 tracking channels and 2 fast acquisition
channels supporting GPS, Galileo, GLONASS,
BeiDou and QZSS systems
|
• ST DRAW (Dead Reckoning Automotive Way)
supported (STA8089GBD Only)
|
• Pin to pin compatible with STA8088G
|
• Single die standalone receiver embedding RF
Front-End and low noise amplifier
|
• -162 dBm indoor sensitivity (tracking mode)
|
• Fast TTFF < 1 s in Hot start and 30 s in Cold
Start
|
• High performance ARM946 MCU (up to
196 MHz)
|
|
| CATALOG |
| STA8089GTR COUNTRY OF ORIGIN |
STA8089GTR PARAMETRIC INFO
|
STA8089GTR PACKAGE INFO
|
STA8089GTR MANUFACTURING INFO
|
STA8089GTR PACKAGING INFO
|
STA8089GTR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Philippines |
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Maximum Operating Frequency (MHz) |
1575.42 |
| Typical Noise Figure (dB) |
2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Supply Voltage (V) |
1.08|1.62|1.71 |
| Typical Operating Supply Voltage (V) |
1.2|1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
1.32|1.89|3.6 |
|
|
PACKAGE INFO
|
| Supplier Package |
VFQFPN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
56 |
| Lead Shape |
No Lead |
| PCB |
56 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
0.84 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Fine Quad Flat Package No Lead, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Shelf Life Period |
2 Years |
|
|

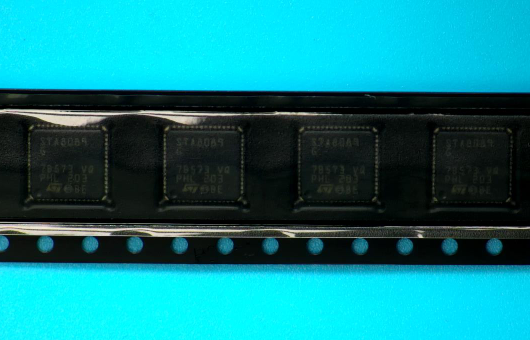

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
|

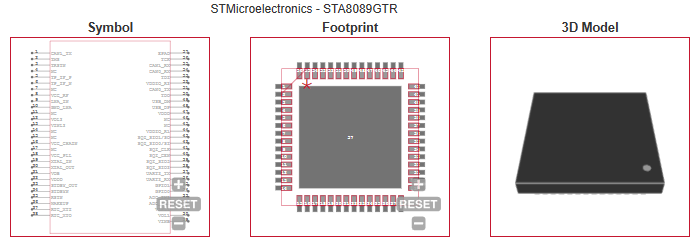

ECAD MODELS
|
|
|
