• Up to 40 V input voltage
|
• Less than 0.5 V voltage overhead
|
• Up to 1.5 A output current
|
| • PWM dimming pin
|
| • Shutdown pin |
| • LED disconnection diagnostic |
| • Slope control with external cap |
|
| CATALOG |
| STCS1APUR COUNTRY OF ORIGIN |
STCS1APUR PARAMETRIC INFO
|
STCS1APUR PACKAGE INFO
|
STCS1APUR MANUFACTURING INFO
|
STCS1APUR PACKAGING INFO
|
STCS1APUR EACD MODELS
|
| STCS1APUR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
| Philippines |
|
PARAMETRIC INFO
|
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5|9|12|15|18|24 |
| Maximum Operating Supply Voltage (V) |
40 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Operating Supply Voltage (V) |
4.5 to 40 |
| Process Technology |
BiCMOS |
|
|
PACKAGE INFO
|
| Supplier packaging |
DFN EP |
| Basic package type |
Non-Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
No Lead |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
0.5 |
| Package length (mm) |
3 |
| Package width (mm) |
3 |
| Package height (mm) |
0.88 |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
0.9 |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Dual Flat Package No Lead |
| Package series name |
DFN |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
IPC-1752 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Package |

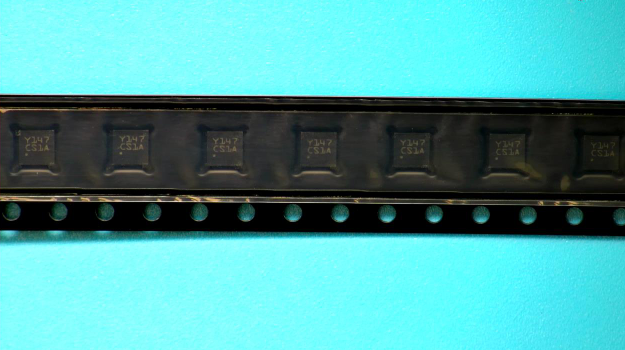

Tape and reel packaging |
| packaging type file |
Link to datasheet |
|
|

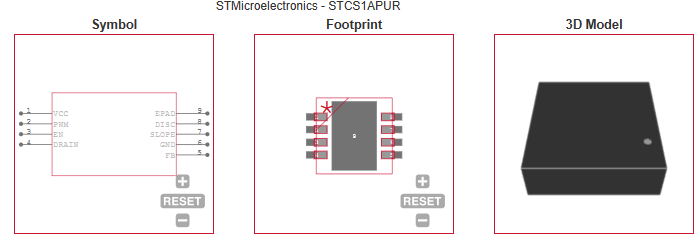

ECAD MODELS
|
|
|
APPLICATIONS
|
• LED constant current supplying for varying input voltages
|
| • Low voltage lighting |
| • Small appliances LED lighting |
| |
