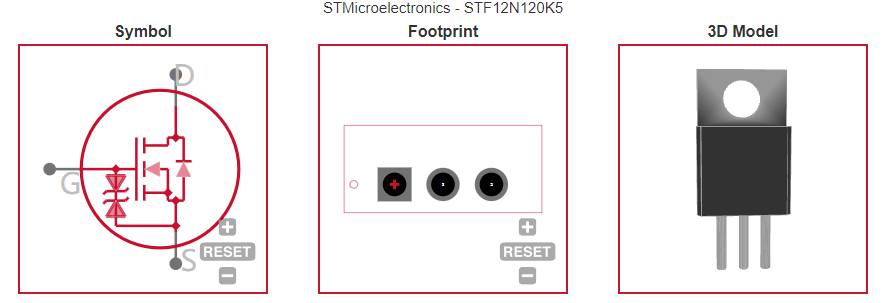

STF12N120K5 STMicroelectronics MOSFET N-CH 1200V 12A TO-220FP

Channel Type	N
Channel Mode	Enhancement
Configuration	Single
Maximum Drain Source Voltage (V)	1200
Maximum Continuous Drain Current (A)	12
Maximum Gate Source Voltage (V)	±30
Maximum Drain Source Resistance (mOhm)	690@10V
Typical Gate Charge @ Vgs (nC)	44.2@10V
Typical Gate Charge @ 10V (nC)	44.2
Maximum Power Dissipation (mW)	40000
Process Technology	MDmesh K5
Category	Power MOSFET
Typical Input Capacitance @ Vds (pF)	1370@100V
Typical Turn-On Delay Time (ns)	23
Typical Turn-Off Delay Time (ns)	68.5
Typical Fall Time (ns)	18.5
Typical Rise Time (ns)	11
Maximum Gate Source Leakage Current (nA)	10000
Maximum Gate Threshold Voltage (V)	5
Maximum IDSS (uA)	1
Number of Elements per Chip	1
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

Supplier Package	TO-220FP
Basic Package Type	Through Hole
Pin Count	3
Lead Shape	Through Hole
PCB	3
Tab	Tab
Pin Pitch (mm)	2.7(Max)
Package Length (mm)	10.4(Max)
Package Width (mm)	4.6(Max)
Package Height (mm)	16.4(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	10.4(Max)
Package Overall Width (mm)	4.6(Max)
Package Overall Height (mm)	20(Max)
Seated Plane Height (mm)	20(Max)
Mounting	Through Hole
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Transistor Outline Package Fullpak
Package Family Name	TO
Jedec	N/A

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	10
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn
Under Plating Material	N/A
Terminal Base Material	Cu Alloy
Shelf Life Period	2 Years
Number of Wave Cycles	2

Packaging	Tube
Packaging Document	Link to Datasheet

• Switching applications
