• Designed for automotive applications and AEC-Q101 qualified
|
• 180 mJ of avalanche energy @ TC = 150 °C,L = 3 mH
|
• ESD gate-emitter protection
|
• Gate-collector high voltage clamping
|
• Logic level gate drive
|
• Logic level gate drive
|
• High pulsed current capability
|
• Gate and gate-emitter resistor
|
|
| CATALOG |
STGD18N40LZT4 COUNTRY OF ORIGIN
|
STGD18N40LZT4 PARAMETRIC INFO
|
STGD18N40LZT4 PACKAGE INFO
|
STGD18N40LZT4 MANUFACTURING INFO
|
STGD18N40LZT4 PACKAGING INFO
|
STGD18N40LZT4 ECAD MODELS
|
STGD18N40LZT4 APPLICATION
|
|
COUNTRY OF ORIGIN
|
Singapore
|
China
|
Italy
|
|
PARAMETRIC INFO
|
| Channel Type |
N |
| Configuration |
Single |
| Maximum Collector-Emitter Voltage (V) |
360 |
| Maximum Continuous Collector Current (A) |
30 |
| Maximum Power Dissipation (W) |
125 |
| Maximum Gate Emitter Voltage (V) |
12 |
| Typical Collector Emitter Saturation Voltage (V) |
1.35 |
| Maximum Gate Emitter Leakage Current (uA) |
830 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Automotive |
|
|
PACKAGE INFO
|
| Supplier Package |
DPAK |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.3(Max) |
| Package Length (mm) |
6.6(Max) |
| Package Width (mm) |
6.2(Max) |
| Package Height (mm) |
2.4(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.6(Max) |
| Package Overall Width (mm) |
10.1(Max) |
| Package Overall Height (mm) |
2.63(Max) |
| Seated Plane Height (mm) |
2.63(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO-252 |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
NiP |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging Suffix |

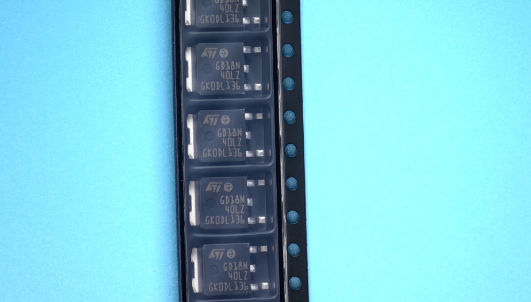

T4 |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|
| APPLICATION |
| • Pencil coil electronic ignition driver |
| |
