• Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
|
• Memories– 16 to 256 Kbytes of Flash memory– 4 to 32 Kbytes of SRAM with HW parity
|
• CRC calculation unit
|
| • Reset and power management– Digital & I/Os supply: VDD = 2.4 V to 3.6 V– Analog supply: VDDA = VDD to 3.6 V– Power-on/Power down reset (POR/PDR)– Low power modes: Sleep, Stop, Standby |
| |
| CATALOG |

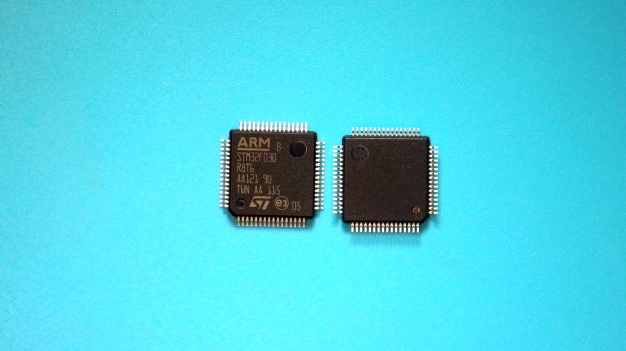

| STM32F030R8T6 COUNTRY OF ORIGIN |
STM32F030R8T6 PARAMETRIC INFO
|
STM32F030R8T6 PACKAGE INFO
|
STM32F030R8T6 MANUFACTURING INFO
|
STM32F030R8T6 PACKAGING INFO
|
STM32F030R8T6 EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| Taiwan (Province of China) |
| Malaysia |
|
PARAMETRIC INFO
|
| Tradename |
STM32 |
| Family Name |
STM32F |
| Data Bus Width (bit) |
32 |
| Device Core |
ARM Cortex M0 |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
48 |
| Program Memory Type |
Flash |
| Program Memory Size |
64KB |
| RAM Size |
8KB |
| Maximum CPU Frequency (MHz) |
48 |
| DMA Channels |
5 |
| Direct Memory Access |
Yes |
| Floating Point Unit |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Multiply Accumulate |
No |
| Input Capture Channels |
4 |
| Output Compare Channels |
4 |
| Internal/External Clock Type |
Internal/External |
| Touch Sensing Interface |
No |
| Power On Reset |
Yes |
| Memory Protection Unit |
No |
| Temperature Sensor |
Yes |
| DDR |
No |
| Memory Management Unit |
No |
| Integrated Development Environment |
No |
| Super Scalar |
No |
| External Bus Interface |
No |
| Number of Programmable I/Os |
55 |
| Number of Timers |
7 |
| ADC Channels |
18 |
| ADC Resolution (bit) |
12 |
| Core Architecture |
ARM |
| Number of ADCs |
Single |
| Watchdog |
1 |
| Parallel Master Port |
No |
| Real Time Clock |
Yes |
| Interface Type |
I2C/SPI/USART |
| Programmability |
Yes |
| SPI |
2 |
| I2C |
2 |
| I2S |
0 |
| UART |
0 |
| USART |
2 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
444 |
| Minimum Operating Supply Voltage (V) |
2.4 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
64 |
| Lead Shape |
Gull-wing |
| PCB |
64 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
10 |
| Package Width (mm) |
10 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
12 |
| Package Overall Width (mm) |
12 |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BCD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
10000 |
|
|
ECAD MODELS
|
|
