• Core: Arm® Cortex®-M4 32-bit CPU with FPU(72 MHz max), single-cycle multiplication and HW division, 90 DMIPS (from CCM), DSP instruction and MPU (memory protection unit)
|
• Operating conditions:– VDD, VDDA voltage range: 2.0 V to 3.6 V
|
• Memories– 128 to 256 Kbytes of Flash memory– Up to 40 Kbytes of SRAM, with HW parity check implemented on the first 16 Kbytes.– Routine booster: 8 Kbytes of SRAM on instruction and data bus, with HW parity check (CCM)
|
| • CRC calculation unit |
• Reset and supply management– Power-on/power-down reset (POR/PDR)– Programmable voltage detector (PVD)– Low-power modes: Sleep, Stop and
Standby– VBAT supply for RTC and backup registers |
| • Clock management– 4 to 32 MHz crystal oscillator– 32 kHz oscillator for RTC with calibration– Internal 8 MHz RC with x 16 PLL option–Internal 40 kHz oscillator |
| • Up to 87 fast I/Os– All mappable on external interrupt vectors– Several 5 V-tolerant |
| • Interconnect matrix |
| • 12-channel DMA controller |
| • Four ADCs 0.20 µS (up to 39 channels) with selectable resolution of 12/10/8/6 bits, 0 to 3.6 V conversion range, single ended/differential input, separate analog supply from 2 to 3.6 V |
| • Two 12-bit DAC channels with analog supply from 2.4 to 3.6 V |
| |
| CATALOG |
| STM32F303CCT6 COUNTRY OF ORIGIN |
STM32F303CCT6 PARAMETRIC INFO
|
STM32F303CCT6 PACKAGE INFO
|
STM32F303CCT6 MANUFACTURING INFO
|
STM32F303CCT6 PACKAGING INFO
|
STM32F303CCT6 EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| Taiwan (Province of China) |
| Malaysia |
|
PARAMETRIC INFO
|
| Family Name |
STM32F |
| Data Bus Width (bit) |
32 |
| Device Core |
ARM Cortex M4 |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
72 |
| Program Memory Type |
Flash |
| Program Memory Size |
256KB |
| RAM Size |
40KB |
| Maximum CPU Frequency (MHz) |
72 |
| Number of Programmable I/Os |
37 |
| Number of Timers |
10 |
| ADC Channels |
12/12/12/12 |
| DAC Channels |
12/12 |
| ADC Resolution (bit) |
12/12/12/12 |
| Core Architecture |
ARM |
| Number of ADCs |
Quad |
| Number of DACs |
Dual |
| DAC Resolution (bit) |
12/12 |
| Watchdog |
2 |
| Analog Comparators |
7 |
| Special Features |
CAN Controller |
| Interface Type |
CAN/I2C/I2S/SPI/UART/USART/USB |
| Programmability |
Yes |
| SPI |
3 |
| I2C |
2 |
| I2S |
3 |
| UART |
2 |
| USART |
3 |
| CAN |
1 |
| USB |
1 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
488 |
| Minimum Operating Supply Voltage (V) |
2 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
Gull-wing |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BBC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
10000 |
|
|

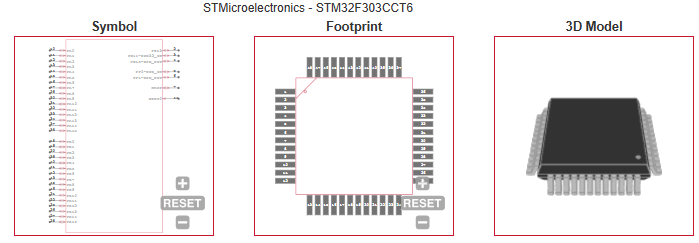

ECAD MODELS
|
|
