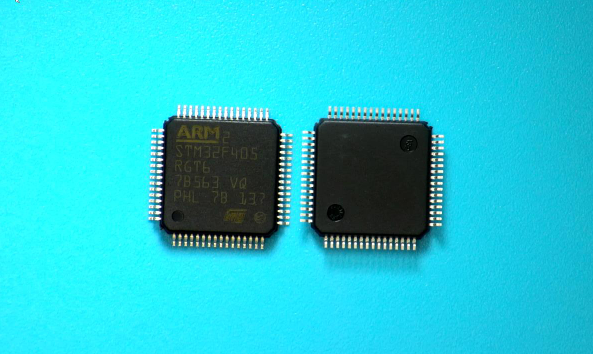

STM32F405RGT6 STMicroelectronics IC MCU 32BIT 1MB FLASH 64LQFP

label:

2024/02/1 307

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

• Memories
– Up to 1 Mbyte of Flash memory
– Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) dataRAM
– 512 bytes of OTP memory
– Flexible static memory controllersupporting Compact Flash, SRAM,PSRAM, NOR and NAND memories

• LCD parallel interface, 8080/6800 modes

• Clock, reset and supply management
– 1.8 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC (1%accuracy)
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration

• Low-power operation
– Sleep, Stop and Standby modes
– VBAT supply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM

• 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode

• 2×12-bit D/A converters

• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

• Up to 17 timers: up to twelve 16-bit and two 32- bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• Debug mode
– Serial wire debug (SWD) & JTAG interfaces
– Cortex-M4 Embedded Trace Macrocell™

• Up to 140 I/O ports with interrupt capability
– Up to 136 fast I/Os up to 84 MHz
– Up to 138 5 V-tolerant I/Os

• Up to 15 communication interfaces
– Up to 3 × I2C interfaces (SMBus/PMBus)
– Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
– Up to 3 SPIs (42 Mbits/s), 2 with muxedfull-duplex I2S to achieve audio classaccuracy via internal audio PLL or externalclock
– 2 × CAN interfaces (2.0B Active)
– SDIO interface

• Advanced connectivity
– USB 2.0 full-speed device/host/OTGcontroller with on-chip PHY
– USB 2.0 high-speed/full-speeddevice/host/OTG controller with dedicatedDMA, on-chip full-speed PHY and ULPI
– 10/100 Ethernet MAC with dedicated DMA:supports IEEE 1588v2 hardware, MII/RMII

• 8- to 14-bit parallel camera interface up to 54 Mbytes/s

• True random number generator

• CRC calculation unit

• 96-bit unique ID

• RTC: subsecond accuracy, hardware calendar

CATALOG

STM32F405RGT6 COUNTRY OF ORIGIN

STM32F405RGT6 PARAMETRIC INFO

STM32F405RGT6 PACKAGE INFO

STM32F405RGT6 MANUFACTURING INFO

STM32F405RGT6 PACKAGING INFO

STM32F405RGT6 ECAD MODELS

COUNTRY OF ORIGIN

Taiwan (Province of China)

Philippines

China

Malaysia

PARAMETRIC INFO

Tradename	STM32
Data Bus Width (bit)	32
Family Name	STM32F
Device Core	ARM Cortex M4
Instruction Set Architecture	RISC
Maximum Clock Rate (MHz)	168
Program Memory Type	Flash
Program Memory Size	1MB
RAM Size	196KB
Maximum CPU Frequency (MHz)	168
Hardware Acceleration	FPU
Trace Hardware	JTAG/SWD
Maximum Dhrystone MIPS (MIPS)	210
DMA Channels	16
CAN Type	2.0B
EEPROM	4KB
Direct Memory Access	Yes
Floating Point Unit	Yes
Bluetooth	No
Wi-Fi	No
Multiply Accumulate	No
Input Capture Channels	16
Output Compare Channels	16
Internal/External Clock Type	External
Touch Sensing Interface	No
Power On Reset	Yes
Memory Protection Unit	Yes
Temperature Sensor	Yes
DDR	No
Memory Management Unit	No
Integrated Development Environment	No
Super Scalar	No
External Bus Interface	No
Number of Programmable I/Os	51
Number of Timers	14
ADC Channels	16/16/16
DAC Channels	2
ADC Resolution (bit)	12/12/12
Number of ADCs	Triple
Core Architecture	ARM
Number of DACs	Single
DAC Resolution (bit)	12
PWM	2
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Interface Type	CAN/I2C/I2S/SPI/UART/USART/USB
Programmability	Yes
SPI	3
I2C	3
I2S	2
Process Technology	CMOS
UART	2
USART	4
CAN	2
USB	2
Ethernet	0
Maximum Power Dissipation (mW)	435
Minimum Operating Supply Voltage (V)	1.8
Typical Operating Supply Voltage (V)	2.5\|3.3
Maximum Operating Supply Voltage (V)	3.6
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Temperature Flag	Opr
Supplier Temperature Grade	Industrial
Operating Supply Voltage (V)	2.5\|3.3
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65

PACKAGE INFO

Supplier Package	LQFP
Basic Package Type	Lead-Frame SMT
Pin Count	64
Lead Shape	Gull-wing
PCB	64
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	10
Package Width (mm)	10
Package Height (mm)	1.4
Package Diameter (mm)	N/R
Package Overall Length (mm)	12
Package Overall Width (mm)	12
Package Overall Height (mm)	1.6(Max)
Seated Plane Height (mm)	1.6(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Low Profile Quad Flat Package
Package Family Name	QFP
Jedec	N/A

MANUFACTURING INFO

MSL	3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn
Under Plating Material	Ag
Terminal Base Material	Cu Alloy
Shelf Life Period	2 Years
Number of Wave Cycles	N/R

PACKAGING INFO

Packaging	Tray
Packaging Document	Link to Datasheet

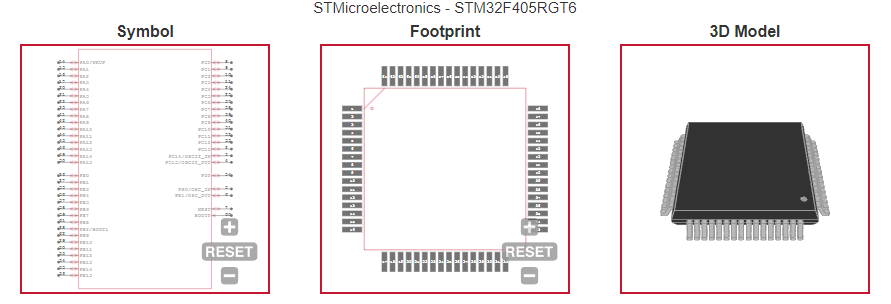

ECAD MODELS
