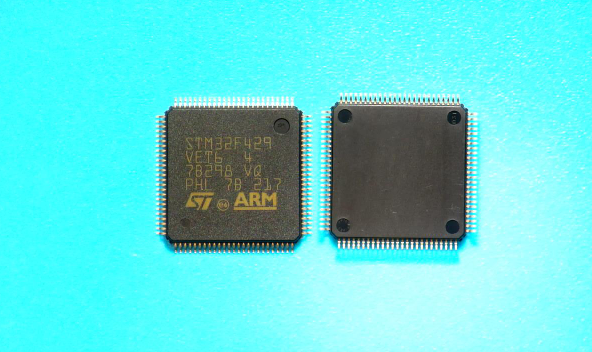

STM32F429VET6 STMicroelectronics IC MCU 32BIT 512KB FLASH 100LQFP

label:

2024/02/1 230

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

• Memories
– Up to 2 MB of Flash memory organized intotwo banks allowing read-while-write
– Up to 256+4 KB of SRAM including 64-KBof CCM (core coupled memory) data RAM
– Flexible external memory controller with upto 32-bit data bus: SRAM, PSRAM,SDRAM/LPSDR SDRAM, CompactFlash/NOR/NAND memories

• LCD parallel interface, 8080/6800 modes

• LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)

• Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)

• Clock, reset and supply management
– 1.7 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC (1%accuracy)
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration

• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC, 20×32 bit backupregisters + optional 4 KB backup SRAM

• 3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode

• 2×12-bit D/A converters

• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

• Up to 17 timers: up to twelve 16-bit and two 32- bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• Debug mode
– SWD & JTAG interfaces
– Cortex-M4 Trace Macrocell™

• Up to 168 I/O ports with interrupt capability
– Up to 164 fast I/Os up to 90 MHz
– Up to 166 5 V-tolerant I/Os

• Up to 21 communication interfaces
– Up to 3 × I2C interfaces (SMBus/PMBus)
– Up to 4 USARTs/4 UARTs (11.25 Mbit/s,ISO7816 interface, LIN, IrDA, modemcontrol)
– Up to 6 SPIs (45 Mbits/s), 2 with muxedfull-duplex I2S for audio class accuracy viainternal audio PLL or external clock
– 1 x SAI (serial audio interface)
– 2 × CAN (2.0B Active) and SDIO interface

• Advanced connectivity
– USB 2.0 full-speed device/host/OTGcontroller with on-chip PHY
– USB 2.0 high-speed/full-speeddevice/host/OTG controller with dedicatedDMA, on-chip full-speed PHY and ULPI
– 10/100 Ethernet MAC with dedicated DMA:supports IEEE 1588v2 hardware, MII/RMII

• 8- to 14-bit parallel camera interface up to 54 Mbytes/s

• True random number generator

• CRC calculation unit

• RTC: subsecond accuracy, hardware calendar

• 96-bit unique ID

CATALOG

STM32F429VET6 COUNTRY OF ORIGIN

STM32F429VET6 PARAMETRIC INFO

STM32F429VET6 PACKAGE INFO

STM32F429VET6 MANUFACTURING INFO

STM32F429VET6 PACKAGING INFO

STM32F429VET6 ECAD MODELS

COUNTRY OF ORIGIN

Philippines

Korea (Republic of)

Malaysia

France

Taiwan (Province of China)

PARAMETRIC INFO

Tradename	STM32
Data Bus Width (bit)	32
Family Name	STM32F
Device Core	ARM Cortex M4
Instruction Set Architecture	RISC
Maximum Clock Rate (MHz)	180
Program Memory Type	Flash
Program Memory Size	512KB
RAM Size	260KB
Maximum CPU Frequency (MHz)	180
Hardware Acceleration	FPU
Trace Hardware	JTAG/SWD
Maximum Dhrystone MIPS (MIPS)	1.25
DMA Channels	16
CAN Type	2.0B
Ethernet Interface Type	MII/RMII
Ethernet Speed	10Mbps/100Mbps
Direct Memory Access	Yes
Floating Point Unit	Yes
Bluetooth	No
Wi-Fi	No
Multiply Accumulate	No
Input Capture Channels	4
Output Compare Channels	4
Internal/External Clock Type	Internal/External
Touch Sensing Interface	No
Power On Reset	No
Memory Protection Unit	Yes
Temperature Sensor	Yes
DDR	No
Memory Management Unit	No
Integrated Development Environment	No
Super Scalar	No
External Bus Interface	No
Number of Programmable I/Os	82
Number of Timers	14
ADC Channels	24/24/24
DAC Channels	2/2
ADC Resolution (bit)	12/12/12
Number of ADCs	Triple
Core Architecture	ARM
Number of DACs	Dual
DAC Resolution (bit)	12/12
PWM	2
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB
Timers Resolution (bit)	16/32
Programmability	Yes
SPI	6
I2C	3
I2S	2
UART	4
USART	4
CAN	2
USB	2
Ethernet	1
Maximum Power Dissipation (mW)	465
Minimum Operating Supply Voltage (V)	1.8
Typical Operating Supply Voltage (V)	2.5\|3.3
Maximum Operating Supply Voltage (V)	3.6
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Temperature Flag	Opr
Supplier Temperature Grade	Industrial
Operating Supply Voltage (V)	2.5\|3.3
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65

PACKAGE INFO

Supplier Package	LQFP
Basic Package Type	Lead-Frame SMT
Pin Count	100
Lead Shape	Gull-wing
PCB	100
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	14
Package Width (mm)	14
Package Height (mm)	1.4
Package Diameter (mm)	N/R
Package Overall Length (mm)	16
Package Overall Width (mm)	16
Package Overall Height (mm)	1.6(Max)
Seated Plane Height (mm)	1.6(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Low Profile Quad Flat Package
Package Family Name	QFP
Jedec	MS-026BED
Package Outline	Link to Datasheet

MANUFACTURING INFO

Shelf Life Period

2 Years

PACKAGING INFO

Packaging

Tray

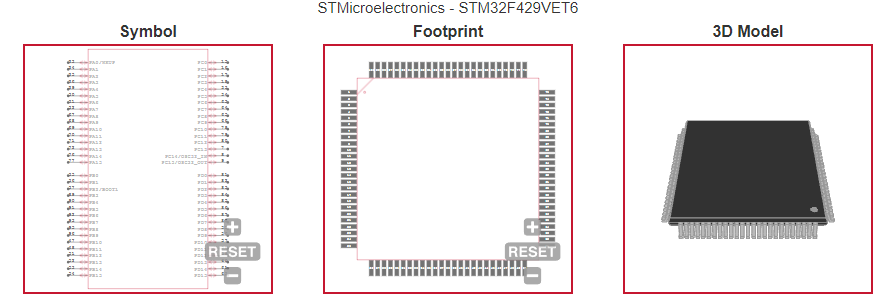

ECAD MODELS
