• Ultra-low-power platform– 1.65 V to 3.6 V power supply– -40 to 125 °C temperature range– 0.23 µA Standby mode (2 wakeup pins)– 0.29 µA Stop mode (16 wakeup lines)– 0.54 µA Stop mode + RTC + 2 KB RAM retention– Down to 76 µA/MHz in Run mode– 5 µs wakeup time (from Flash memory)– 41 µA 12-bit ADC conversion at 10 ksps
|
• Core: Arm® 32-bit Cortex®-M0+– From 32 kHz to 32 MHz max.– 0.95 DMIPS/MHz
|
• Reset and supply management– Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds– Ultralow power POR/PDR– Programmable voltage detector (PVD)
|
• Clock sources– 0 to 32 MHz external clock– 32 kHz oscillator for RTC with calibration– High speed internal 16 MHz factory-trimmed RC
(+/- 1%)– Internal low-power 37 kHz RC– Internal multispeed low-power 65 kHz to4.2 MHz RC– PLL for CPU clock
|
• Pre-programmed bootloader– USART, SPI supported
|
• Development support– Serial wire debug supported
|
• Up to 28 fast I/Os (23 I/Os 5V tolerant)
|
|
| CATALOG |

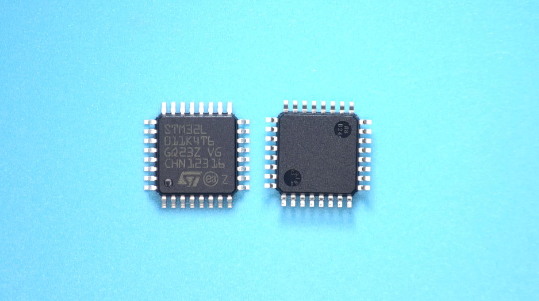

STM32L011K4T6 COUNTRY OF ORIGIN
|
STM32L011K4T6 PARAMETRIC INFO
|
STM32L011K4T6 PACKAGE INFO
|
STM32L011K4T6 MANUFACTURING INFO
|
STM32L011K4T6 PACKAGING INFO
|
| STM32L011K4T6 ECAD MODELS |
|
COUNTRY OF ORIGIN
|
China
|
Taiwan (Province of China)
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Tradename |
STM32 |
| Family Name |
STM32L |
| Data Bus Width (bit) |
32 |
| Device Core |
ARM Cortex M0+ |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
32 |
| Program Memory Type |
Flash |
| Program Memory Size |
16KB |
| RAM Size |
2KB |
| Maximum CPU Frequency (MHz) |
32 |
| DMA Channels |
7 |
| EEPROM |
512B |
| Direct Memory Access |
Yes |
| Floating Point Unit |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Multiply Accumulate |
No |
| Input Capture Channels |
4 |
| Output Compare Channels |
4 |
| Internal/External Clock Type |
Internal/External |
| Touch Sensing Interface |
No |
| Power On Reset |
No |
| Memory Protection Unit |
No |
| Temperature Sensor |
Yes |
| DDR |
No |
| Memory Management Unit |
No |
| Integrated Development Environment |
No |
| Super Scalar |
No |
| External Bus Interface |
No |
| Number of Programmable I/Os |
26 |
| Number of Timers |
3 |
| ADC Channels |
10 |
| ADC Resolution (bit) |
12 |
| Core Architecture |
ARM |
| Number of ADCs |
Single |
| Watchdog |
2 |
| Analog Comparators |
2 |
| Parallel Master Port |
No |
| Real Time Clock |
Yes |
| Interface Type |
I2C/SPI/UART/USART |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
1 |
| I2S |
0 |
| UART |
1 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
333 |
| Minimum Operating Supply Voltage (V) |
1.65 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
Gull-wing |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BBA |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| Shelf Life Period |
2 Years |
|
|
| PACKAGING INFO |
|
|
|

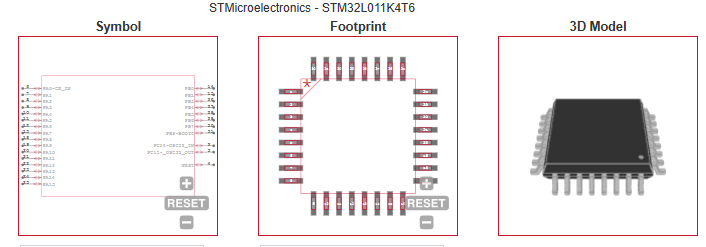

| ECAD MODELS |
 |
| |
