| • Performance benckmark– 1.25 DMIPS/MHz (Drystone 2.1)– 410.32 Coremark® (3.42 Coremark/MHz@120 MHz) |
| • Energy benckmark– 233 ULPMark™CP score– 54.7 ULPMark™PP score |
| • RTC with HW calendar, alarms and calibration |
| • Up to 24 capacitive sensing channels: support touchkey, linear and rotary touch sensors |
| • Advanced graphics features– Chrom-ART Accelerator™ (DMA2D) for enhanced graphic content creation– Chrom-GRC™ (GFXMMU) allowing up to 20% of graphic resources optimization– MIPI® DSI Host controller with two DSI lanes running at up to 500 Mbits/s each– LCD-TFT controller |
| • 16x timers: 2 x 16-bit advanced motor-control,2 x 32-bit and 5 x 16-bit general purpose, 2x16-bit basic, 2x low-power 16-bit timers(available in Stop mode), 2x watchdogs,SysTick timer |
| • Up to 136 fast I/Os, most 5 V-tolerant, up to 14 I/Os with independent supply down to 1.08 V |
| • 4x digital filters for sigma delta modulator |
| • Rich analog peripherals (independent supply) |
| |
| CATALOG |

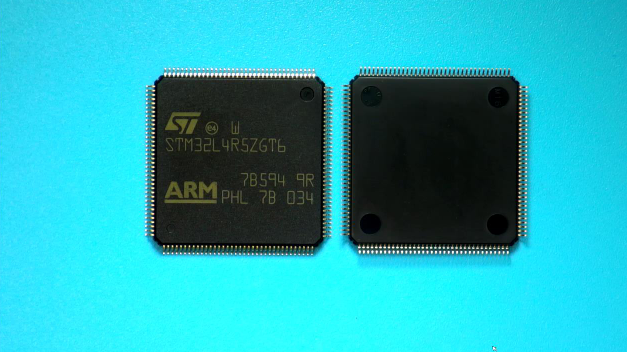

| STM32L4R5ZGT6 COUNTRY OF ORIGIN |
STM32L4R5ZGT6 PARAMETRIC INFO
|
STM32L4R5ZGT6 PACKAGE INFO
|
STM32L4R5ZGT6 MANUFACTURING INFO
|
STM32L4R5ZGT6 PACKAGING INFO
|
STM32L4R5ZGT6 EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Family Name |
STM32L |
| Data Bus Width (bit) |
32 |
| Device Core |
ARM Cortex M4 |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
120 |
| Program Memory Type |
Flash |
| Program Memory Size |
1MB |
| RAM Size |
640.125KB |
| Maximum CPU Frequency (MHz) |
120 |
| Number of Programmable I/Os |
112 |
| Number of Timers |
14 |
| ADC Channels |
16 |
| DAC Channels |
2/2 |
| ADC Resolution (bit) |
12 |
| Core Architecture |
ARM |
| Number of ADCs |
Single |
| Number of DACs |
Dual |
| DAC Resolution (bit) |
12/12 |
| Interface Type |
CAN/I2C/SPI/UART/USART/USB |
| Programmability |
Yes |
| SPI |
3 |
| I2C |
4 |
| I2S |
0 |
| UART |
3 |
| USART |
3 |
| CAN |
1 |
| USB |
1 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
625 |
| Minimum Operating Supply Voltage (V) |
1.71 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
144 |
| Lead Shape |
Gull-wing |
| PCB |
144 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
20 |
| Package Width (mm) |
20 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
22 |
| Package Overall Width (mm) |
22 |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BFB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
