• Operating conditions
– Operating power supply range 1.8 V to
3.6 V (down to 1.65 V at power down)
– Temp. range: - 40 °C to 85, 105 or 125 °C
|
• Low power features
– 5 low power modes: Wait, Low power run
(5.1 µA), Low power wait (3 µA), Active-halt
with full RTC (1.3 µA), Halt (350 nA)
– Consumption: 195 µA/MHz + 440 µA
– Ultra-low leakage per I/0: 50 nA
– Fast wakeup from Halt: 4.7 µs
|
• Advanced STM8 core
– Harvard architecture and 3-stage pipeline
– Max freq. 16 MHz, 16 CISC MIPS peak
– Up to 40 external interrupt sources
|
• Reset and supply management
– Low power, ultra-safe BOR reset with
5 selectable thresholds
– Ultra-low-power POR/PDR
– Programmable voltage detector (PVD)
|
• Clock management
– 1 to 16 MHz crystal oscillator
– 32 kHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– Internal 38 kHz low consumption RC
– Clock security system
|
| • Low power RTC
– BCD calendar with alarm interrupt
– Auto-wakeup from Halt w/ periodic interrupt |
| • LCD: up to 4x28 segments w/ step-up
converter |
| • Memories
– Up to 32 Kbytes of Flash program memory
and 1 Kbyte of data EEPROM with ECC,
RWW
– Flexible write and read protection modes
– Up to 2 Kbytes of RAM |
| • DMA
– 4 channels; supported peripherals: ADC,
DAC, SPI, I2C, USART, timers– 1 channel for memory-to-memory |
| • 12-bit DAC with output buffer |
| • 12-bit ADC up to 1 Msps/25 channels
– T. sensor and internal reference voltage
|
| • 2 ultra-low-power comparators
– 1 with fixed threshold and 1 rail to rail
– Wakeup capability |
| • Timers
– Two 16-bit timers with 2 channels (used as
IC, OC, PWM), quadrature encoder
– One 16-bit advanced control timer with
3 channels, supporting motor control
– One 8-bit timer with 7-bit prescaler
– 2 watchdogs: 1 window, 1 independent
– Beeper timer with 1, 2 or 4 kHz frequencies |
|
| CATALOG |

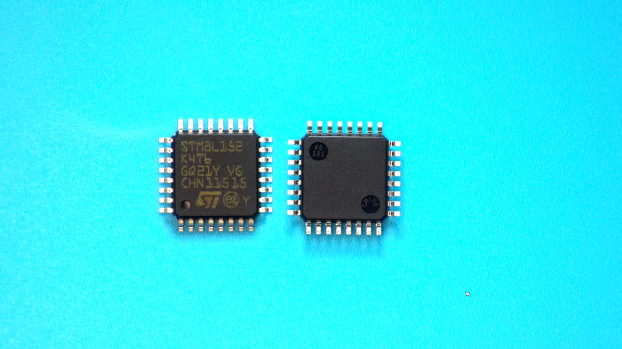

STM8L152K4T6 COUNTRY OF ORIGIN
|
STM8L152K4T6 PARAMETRIC INFO
|
STM8L152K4T6 PACKAGE INFO
|
STM8L152K4T6 MANUFACTURING INFO
|
STM8L152K4T6 PACKAGING INFO
|
STM8L152K4T6 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
| Taiwan (Province of China) |
| China |
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
8 |
| Family Name |
STM8L |
| Device Core |
STM8 |
| Instruction Set Architecture |
CISC |
| Maximum Clock Rate (MHz) |
16 |
| Program Memory Type |
Flash |
| Program Memory Size |
16KB |
| RAM Size |
2KB |
| Maximum Expanded Memory Size |
16MB |
| Maximum CPU Frequency (MHz) |
16 |
| Number of Programmable I/Os |
29 |
| Number of Timers |
4 |
| ADC Channels |
21 |
| DAC Channels |
1 |
| ADC Resolution (bit) |
12 |
| Number of ADCs |
Single |
| Core Architecture |
STM8 |
| Number of DACs |
Single |
| DAC Resolution (bit) |
12 |
| PWM |
1 |
| Watchdog |
2 |
| LCD Segments |
68 |
| Analog Comparators |
2 |
| Parallel Master Port |
No |
| Real Time Clock |
Yes |
| Special Features |
LCD Controller |
| Interface Type |
I2C/SPI/USART |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
1 |
| I2S |
0 |
| UART |
0 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Maximum Power Dissipation (mW) |
288 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Operating Supply Voltage (V) |
2.5|3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
Gull-wing |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
9 |
| Package Overall Width (mm) |
9 |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BBA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
10000 |
|
|

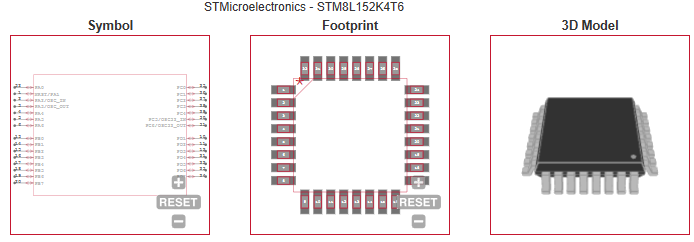

ECAD MODELS
|
|
|
