| STPS20200CG-TR COUNTRY OF ORIGIN |
STPS20200CG-TR PARAMETRIC INFO
|
STPS20200CG-TR PACKAGE INFO
|
STPS20200CG-TR MANUFACTURING INFO
|
STPS20200CG-TR PACKAGING INFO
|
STPS20200CG-TR ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Dual Common Cathode |
| Peak Reverse Repetitive Voltage (V) |
200 |
| Maximum Continuous Forward Current (A) |
20 |
| Average Rectified Forward Current (A) |
20 |
| Maximum Junction Case Thermal Resistance |
1.3°C/W |
| Peak Forward Voltage (V) |
0.86@10A |
| Peak Non-Repetitive Surge Current (A) |
180 |
| Peak Reverse Current (uA) |
15 |
| Operating Junction Temperature (°C) |
-40 to 175 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
175 |
|
|
PACKAGE INFO
|
| Supplier Package |
D2PAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
10.4(Max) |
| Package Width (mm) |
9.35(Max) |
| Package Height (mm) |
4.6(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.4(Max) |
| Package Overall Width (mm) |
15.85(Max) |
| Package Overall Height (mm) |
4.83(Max) |
| Seated Plane Height (mm) |
4.83(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
NiP |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

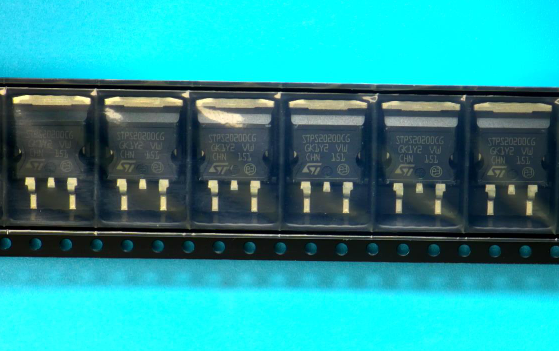

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
100 |
| Packaging Document |
Link to Datasheet |
|
|

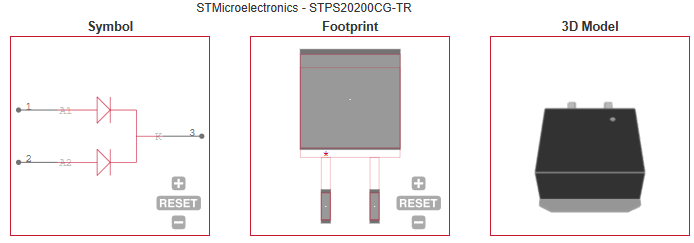

ECAD MODELS
|
|
|
