| ■ Low forward voltage drop |
| ■ Very small conduction losses |
| ■ Negligible switching losses |
| ■ Extremely fast switching |
| ■ Low thermal resistance |
| ■ 200 °C maximum junction temperature |
| ■ Avalanche rated |
|
| CATALOG |
| STPS5045SG-TR COUNTRY OF ORIGIN |
| STPS5045SG-TR PARAMETRIC INFO |
| STPS5045SG-TR PACKAGE INFO |
| STPS5045SG-TR MANUFACTURING INFO |
| STPS5045SG-TR PACKAGING INFO |
| STPS5045SG-TR ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Schottky Diode |
| Configuration |
Single Dual Anode |
| Peak Reverse Repetitive Voltage (V) |
45 |
| Maximum Continuous Forward Current (A) |
50 |
| Peak Forward Voltage (V) |
0.61 |
| Peak Non-Repetitive Surge Current (A) |
600 |
| Peak Reverse Current (uA) |
360 |
| Operating Junction Temperature (°C) |
175 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
175 |
|
|
| PACKAGE INFO |
| Supplier Package |
D2PAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
10.4(Max) |
| Package Width (mm) |
9.35(Max) |
| Package Height (mm) |
4.6(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.4(Max) |
| Package Overall Width (mm) |
15.85(Max) |
| Package Overall Height (mm) |
4.83(Max) |
| Seated Plane Height (mm) |
4.83(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

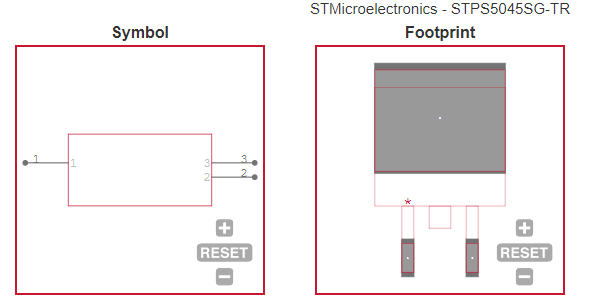

| ECAD MODELS |
 |
| |
|
