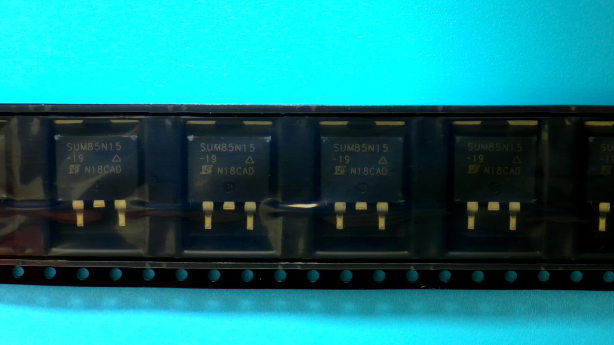

SUM85N15-19-E3 Vishay Semiconductors MOSFET N-CH 150V 85A D2PAK

label:
2023/12/28 212



• TrenchFET Power MOSFET
• 175C Junction Temperature
• New Low Thermal Resistance Package
• 100% Rg Tested


CATALOG
SUM85N15-19-E3 COUNTRY OF ORIGIN
SUM85N15-19-E3 PARAMETRIC INFO
SUM85N15-19-E3 PACKAGE INFO
SUM85N15-19-E3 MANUFACTURING INFO
SUM85N15-19-E3 APPLICATIONS


COUNTRY OF ORIGIN
Taiwan (Province of China)
China


PARAMETRIC INFO
Channel Type N
Channel Mode Enhancement
Configuration Single
Maximum Drain Source Voltage (V) 150
Maximum Continuous Drain Current (A) 85
Maximum Absolute Continuous Drain Current (A) 85
Maximum Gate Source Voltage (V) ±20
Maximum Drain Source Resistance (mOhm) 19@10V
Typical Gate Charge @ Vgs (nC) 76@10V
Typical Gate Charge @ 10V (nC) 76
Maximum Power Dissipation (mW) 3750
Category Power MOSFET
Typical Input Capacitance @ Vds (pF) 4750@25V
Typical Turn-On Delay Time (ns) 22
Typical Turn-Off Delay Time (ns) 40
Typical Fall Time (ns) 170
Typical Rise Time (ns) 170
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 175
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175


PACKAGE INFO
Supplier Package D2PAK
Pin Count 3
PCB 2
Tab Tab
Package Length (mm) 10.41(Max)
Package Width (mm) 9.65(Max)
Package Height (mm) 4.83(Max)
Package Diameter (mm) N/R
Mounting Surface Mount
Package Material Plastic
Package Family Name TO-263
Jedec N/A


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 20 to 40
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn
Under Plating Material Ni
Terminal Base Material Cu


APPLICATIONS
• Primary Side Switch
• Automotive − 42-V EPS and ABS − DC/DC Conversion − Motor Drives
