| • Dust-proof construction protects the interior from
dust, which maintains stable characteristics. |
| • Compliant to high peak temperature lead free
soldering. |
| • Excellent resistance materials and high reliability
wiper achieves 1M cycles |
| • D formation thru-hole rotor enables selection of
any kind of gear shape. |
| • Leaded terminal type is available. |
| • Ultra-thin size (2.1mm height) |
| • Au plated terminals without Lead.
|
|
| CATALOG |
| SV01A103AEA01R00 COUNTRY OF ORIGIN |
| SV01A103AEA01R00 PARAMETRIC INFO |
| SV01A103AEA01R00 PACKAGE INFO |
| SV01A103AEA01R00 MANUFACTURING INFO |
| SV01A103AEA01R00 PACKAGING INFO |

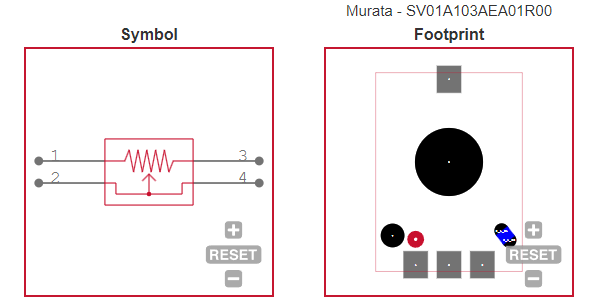

| SV01A103AEA01R00 ECAD MODELS |
| SV01A103AEA01R00 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Linear |
| Linearity Error (%) |
±2 |
| Temperature Coefficient (ppm/°C) |
±500 |
| Resistance (KOhm) |
10 |
| Operating Life (Cycles) |
1M |
| Shock Rating (G) |
20 |
| Resistance Tolerance (%) |
±30 |
| Linearity |
Yes |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SMD |
| Pin Count |
4 |
| PCB |
4 |
| Tab |
N/R |
| Package Length (mm) |
11 |
| Package Width (mm) |
12 |
| Package Height (mm) |
2.7 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R00 |
| Packaging |
Tape and Reel |
|
| |
| ECAD MODELS |
|
|
| APPLICATIONS |
| • Animal robot |
| • Switch for automotive |
| • Motor drive unit |
| • Radio control equipment |
| • Electric motor-driven bicycle |
|
