| CATALOG |
| SVH-21T-P1.1 COUNTRY OF ORIGIN |
| SVH-21T-P1.1 PARAMETRIC INFO |
| SVH-21T-P1.1 PACKAGE INFO |
| SVH-21T-P1.1 MANUFACTURING INFO |
| SVH-21T-P1.1 PACKAGING INFO |
|
| COUNTRY OF ORIGIN |
| INDONESIA |
|
| PARAMETRIC INFO |
| Series Name |
VH |
| Connector Type |
Connector Headers and PCB Receptacles |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Signal |
| Maximum Voltage Rating |
250VDC|250VAC |
| Maximum Current Rating (A) |
10 |
| Maximum Contact Resistance (mOhm) |
20 |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Tin |
| Shielded |
No |
| Wire Size (AWG) |
18-22 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
|
| PACKAGE INFO |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
10.6 |
| Product Depth (mm) |
3 |
| Product Height (mm) |
N/A |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
|
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Phosphor-Bronze |
| Number of Wave Cycles |
N/R |
|
| PACKAGING INFO |
| Packaging |

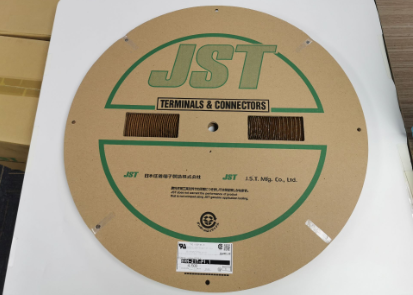

Reel |
| Quantity Of Packaging |
4500 |
| Packaging Document |
Link to Datasheet |
|
|
