• LoRaTM Modem
|
• 168 dB maximum link budget
|
• +20 dBm - 100 mW constant RF output vs. V supply
|
| • +14 dBm high efficiency PA |
| • Programmable bit rate up to 300 kbps |
| • High sensitivity: down to -148 dBm |
| • Bullet-proof front end: IIP3 = -11 dBm |
| • Excellent blocking immunity |
| • Low RX current of 9.9 mA, 200 nA register retention |
| • Fully integrated synthesizer with a resolution of 61 Hz |
| |
| CATALOG |
| SX1276IMLTRT COUNTRY OF ORIGIN |
SX1276IMLTRT PARAMETRIC INFO
|
SX1276IMLTRT PACKAGE INFO
|
SX1276IMLTRT MANUFACTURING INFO
|
SX1276IMLTRT PACKAGING INFO
|
SX1276IMLTRT EACD MODELS
|
| SX1276IMLTRT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| Malaysia |
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum RF Operating Frequency Range (MHz) |
500 to 1500 |
| Modulation Technique |
FSK/GFSK/GMSK/MSK/OOK |
| Maximum Data Rate |
300Kbps |
| Operating Band Frequency (MHz) |
137 to 1020 |
| Maximum RF Operating Frequency (MHz) |
1020 |
| Solutions |
ISM |
| Typical Transmitter Output Power (dBm) |
14 |
| Typical Receiver Sensitivity (dBm) |
-148 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Operating Supply Voltage |
3.3V |
| Minimum Operating Supply Voltage |
1.8V |
| Operating Supply Voltage |
3.3V |
| Maximum Operating Supply Voltage |
3.7V |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
No Lead |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
6 |
| Package Width (mm) |
6 |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
MO-220VJJC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

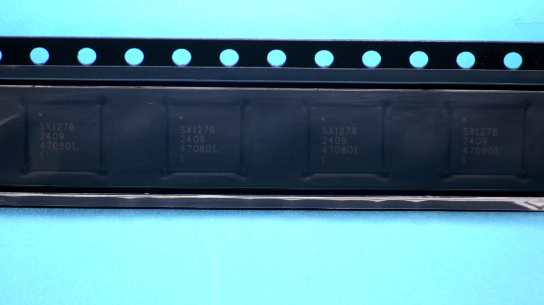

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

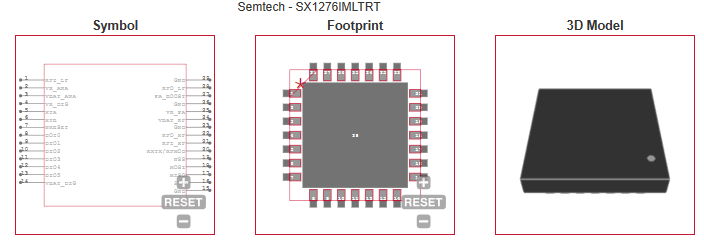

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automated Meter Reading. |
| • Home and Building Automation. |
| • Wireless Alarm and Security Systems. |
| • Industrial Monitoring and Control |
| • Long range Irrigation Systems |
| |
