• Complete eight Sensors Capacitive Touch Controller for Buttons
|
• Proximity Sensing up to several centimetres
|
• No External Components per Sensor Input
|
• Internal Clock Requires No External Components
|
• Differential Sensor Sampling for Reduced EMI
|
• 400 KHz Fast-Mode I²C Interface with Interrupt
|
• -40°C to +85°C Operation
|
|
| CATALOG |
SX8636I05AULTRT COUNTRY OF ORIGIN
|
| SX8636I05AULTRT LIFECYCLE |
SX8636I05AULTRT PARAMETRIC INFO
|
SX8636I05AULTRT PACKAGE INFO
|
SX8636I05AULTRT MANUFACTURING INFO
|
SX8636I05AULTRT PACKAGING INFO
|
SX8636I05AULTRT APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
Malaysia
|
|
| LIFECYCLE |
Obsolete
Oct 20,2021 |
|
PARAMETRIC INFO
|
| Number of Segments |
8 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Operating Supply Voltage (V) |
2.7 to 3.6 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-50 |
|
|
PACKAGE INFO
|
| Supplier Package |
MLPQ EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
No Lead |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.58(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.6(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Micro Lead Frame Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

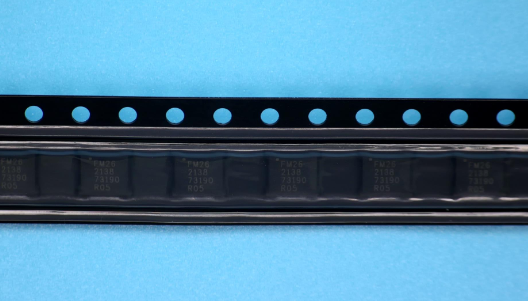

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
| APPLICATIONS |
• Notebook/Netbook/Portable/Handheld computers
|
• Cell phones, PDAs
|
• Consumer Products, Instrumentation, Automotive
|
• Mechanical Button Replacement
|
|
