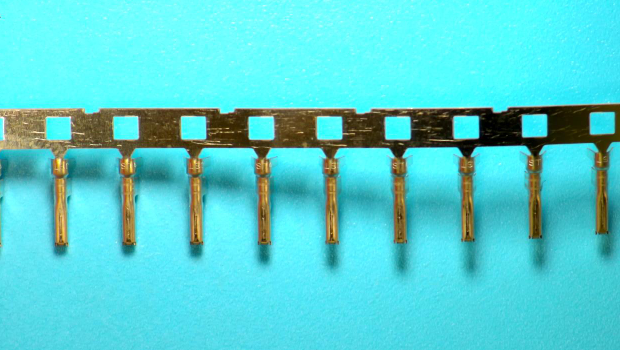

| SZPD-002T-P0.3 COUNTRY OF ORIGIN |
SZPD-002T-P0.3 PARAMETRIC INFO
|
SZPD-002T-P0.3 PACKAGE INFO
|
SZPD-002T-P0.3 MANUFACTURING INFO
|
SZPD-002T-P0.3 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Japan |
|
PARAMETRIC INFO
|
| Connector Type |
Connector Headers and PCB Receptacles |
| Gender |
SKT |
| Termination Method |
Crimp |
| Contact Type |
Signal |
| Maximum Voltage Rating |
100VDC|100VAC |
| Maximum Current Rating (A) |
2 |
| Maximum Contact Resistance (mOhm) |
60 |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Shielded |
no |
| Wire Size (AWG) |
24-28 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Install |
Cable Mount |
| Product Length (mm) |
6.6 |
| Product Depth (mm) |
1 |
| Product Height (mm) |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Package |
Tape and reel packaging |
| packaging type file |
Link to datasheet |
|
