■ 30A switching in 1 form A (NO) and 20A in 1 form C (CO)
|
■ Plastic sealed case available
|
■ Meets UL 508 and 873 spacing - 3.18mm through air, 6.36mm over
surface
|
■ Option for load connections via 0.250”” (6.35mm) Q.C. terminals
|
■ UL class F insulation system standard
|
|
| CATALOG |

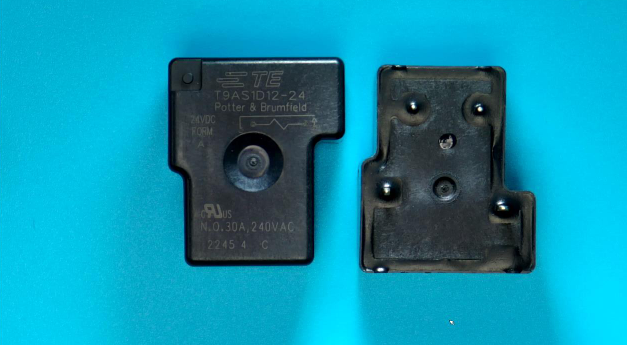

| T9AS1D12-24 COUNTRY OF ORIGIN |
T9AS1D12-24 PARAMETRIC INFO
|
T9AS1D12-24 PACKAGE INFO
|
T9AS1D12-24 MANUFACTURING INFO
|
| T9AS1D12-24 PACKAGING INFO
|

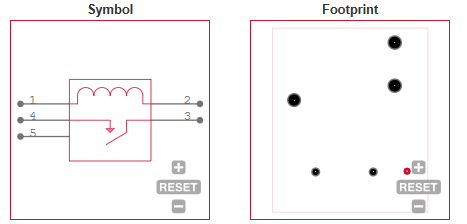

T9AS1D12-24 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Austria |
China
|
Germany
|
Mexico
|
United States of America
|
|
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
24 |
| Coil Current (mA) |
42 |
| Contact Arrangement |
SPST-NO |
| Contact Form |
1 Form A |
| Contact Material |
Silver Cadmium Oxide |
| Maximum AC Switching Voltage (V) |
277 |
| Maximum Switching Current (A) |
30 |
| Coil Resistance (Ohm) |
576 |
| Maximum Pick-Up Voltage |
18VDC |
| Minimum Dropout Voltage |
2.4VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
15 |
| Release Time (ms) |
15 |
| Seal |
Wash Tight |
| Maximum Contact Resistance (mOhm) |
75 |
| Insulation Resistance (MOhm) |
1000 |
| Mechanical Life (Operations) |
10000000 |
| LED Indicator |
No |
| Coil Suppression Diode |
No |
| Push to Test Button |
No |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
85 |
| Bounce Time (ms) |
15 |
|
|
PACKAGE INFO
|
| Maximum Product Height (mm) |
20.4 |
| Maximum Product Length (mm) |
32.51 |
| Maximum Product Depth (mm) |
27.43 |
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
4 |
| Package Type |
N/A |
| Product Length (mm) |
32.51 |
| Product Depth (mm) |
27.43 |
| Product Height (mm) |
27.94 |
| Product Weight (g) |
26 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
50 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
