• General Purpose SMT Chip Tantalum Series
|
• 100% Surge Current Tested
|
• 17 Case Sizes Available, Standard and Low Profile Down to 1mm Maximum Height
|
| • CV Range: 0.10 - 2200μF / 2.5 - 50V
|
| • J-Lead Construction |
|
| CATALOG |
| TAJD107K010RNJ COUNTRY OF ORIGIN |
TAJD107K010RNJ PARAMETRIC INFO
|
TAJD107K010RNJ PACKAGE INFO
|
TAJD107K010RNJ MANUFACTURING INFO
|
TAJD107K010RNJ PACKAGING INFO
|
TAJD107K010RNJ EACD MODELS
|
| TAJD107K010RNJ APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Mexico |
| Japan |
| United States of America |
| El Salvador |
| Czechia |
|
PARAMETRIC INFO
|
| Capacity Value |
100uF |
| Voltage |
10VDC |
| Tolerance |
10% |
| Ripple Current (mA) |
408 |
| Case Code |
D |
| Leakage Current (uA) |
10 |
| Equivalent Series Resistance (Ohm) |
0.9 |
| Case Style |
Molded |
| Fail Safe with Built-in Fuse |
no |
| High Shock and Vibrating |
yes |
| Temperature Range @ Derated Voltage (°C) |
85 to 125 |
| Polarity |
Polar |
| Construction |
Flat |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Equivalent Series Resistance Type |
standard |
| DC Rated Voltage (VDC) |
10 |
| Negative Capacity Tolerance (%) |
-10 |
| Positive Capacity Tolerance (%) |
10 |
| Surge Test Option |
No Surge |
| Minimum Storage Temperature (°C) |
-10 |
| Maximum Storage Temperature (°C) |
50 |
| Maximum Dissipation Factor (%) |
6 |
| type |
Solid |
| Equivalent Series Inductance (nH) |
2.4 |
| Package Region |
World Wide |
| Fixed/Variable |
Fixed |
| Maximum Terminal Width (mm) |
4.5 |
|
|
PACKAGE INFO
|
| Package/Case |
7343-31 |
| Install |
Surface Mount |
| Termination Style |
Inward L |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.3 |
| Product Depth (mm) |
4.3 |
| Product Height (mm) |
2.9 |
| Product Diameter (mm) |
N/R |
| Mounting surface height (mm) |
N/R |
| Product Weight (g) |
0.29 |
| Length Tolerance (mm) |
±0.2 |
| Depth Tolerance (mm) |
+0.2|-0.1 |
| Height Tolerance (mm) |
+0.2|-0.1 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size(mm) |
7.3 x 4.3 x 2.9 |
| Maximum Product Depth (mm) |
4.5 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
10 |
| Number of reflow cycles |
3 |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
10 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
Ni |
| Terminal Base Material |
Alloy 42 |
| Shelf Life Period |
No Limitation |
| Number of Wave Cycles |
3 |
|
|

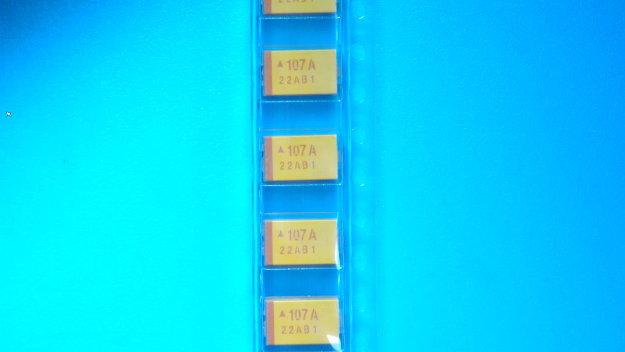

PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| packaging type file |
Link to datasheet |
|
|

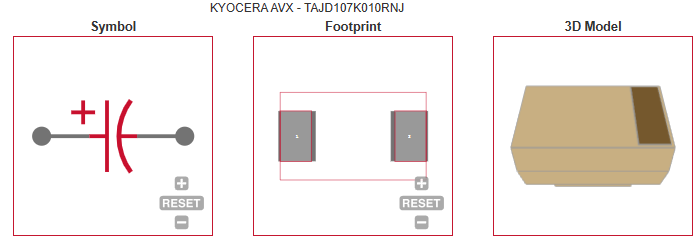

ECAD MODELS
|
|
|
APPLICATIONS
|
• General Low Power DC/DC and LDO
|
| • Entertainment / Infotainment Systems |
| • Height Restricted Design |
|
| |
| |
