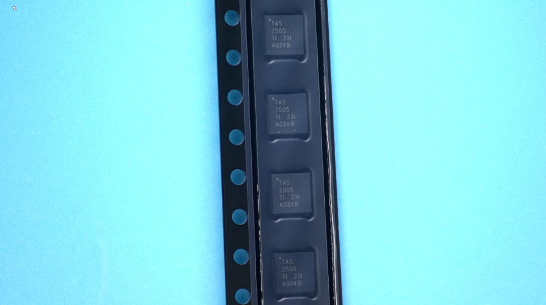

• Mono Class-D BTL Speaker Amplifier– 2.6 W at 10% THD_N (4Ω, 5.5 V)– 1.7 W at 10% THD+N (8 Ω, 5.5 V)
|
• Supports both Digital and Analog Input
|
• Single Supply 2.7 V to 5.5 V
|
| • Load Diagnostic Functions:– Output-to-GND Short– Terminal-to-Terminal Short– Output-to-Power Short– Over Temperature– Input DC |
| • Supports 9-kHz to 96-kHz Sample Rates |
| • Two Single-Ended Inputs with Output Mixing and Level Control |
| • Embedded Power-On-Reset |
| • Programmable Digital Audio Processing:– Bass Boost– Treble– EQ (up to 6 Biquads) |
| • I2S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces |
| • I2C and SPI Control With Auto-Increment |
| • 24-Pin, VQFN Package |
| |
| CATALOG |
| TAS2505IRGER COUNTRY OF ORIGIN |
TAS2505IRGER PARAMETRIC INFO
|
TAS2505IRGER PACKAGE INFO
|
TAS2505IRGER MANUFACTURING INFO
|
TAS2505IRGER PACKAGING INFO
|
TAS2505IRGER EACD MODELS
|
| TAS2505IRGER APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Philippines |
| China |
|
PARAMETRIC INFO
|
| Amplifier Type |
Class-D |
| Function |
Headphone/Speaker |
| Input Signal Type |
Single |
| Output Signal Type |
Differential|Single |
| Output Type |
1-Channel Mono |
| Power Supply Type |
Triple |
| Minimum Dual Supply Voltage (V) |
1.5|1.65|2.7 |
| Typical Dual Supply Voltage (V) |
1.8|3|5 |
| Maximum Dual Supply Voltage (V) |
1.95|5.5 |
| Minimum Load Resistance (Ohm) |
4 |
| Maximum Load Resistance (Ohm) |
32 |
| Typical Output Power (W) |
1.7 |
| Maximum Output Power (W) |
2 |
| Typical Output Power x Channels @ Load (W) |
1.7x1@8Ohm|0.018x1@16Ohm |
| Maximum Output Power x Channels @ Load (W) |
2x1@4Ohm |
| Maximum Input Bias Current (uA) |
55(Typ)@1.8V|55(Typ)@3.6V |
| Typical PSRR (dB) |
55 |
| Total Harmonic Distortion Noise |
0.01% |
| Typical Voltage Gain (dB) |
12.04 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
No Lead |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4.15(Max) |
| Package Width (mm) |
4.15(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.15(Max) |
| Package Overall Width (mm) |
4.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
RG |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Instrument Cluster
|
| • Automotive Emergency Call (eCall) |
| • Telematics |
|
| |
