• Key Features– 11.5V, 12-step Look-Ahead Class-H boost– Integrated DSP– Full Scale Ultrasonic Output to 40kHz– 2 PDM Microphone inputs
|
• Powerful Class-D Audio Amplifier :– 6.1W 1% THD+N (4Ω, 3.6V)– 5W 1% THD+N (8Ω, 3.6V)– 10W 1% THD+N (4Ω, 12V)
|
• Protection Features:– Real-Time I/V-Sense Speaker Protection– Speaker Thermal & Over-Excursion Protection– Short and Open Load Protection– Thermal and Over-Current Protection
|
|
| CATALOG |

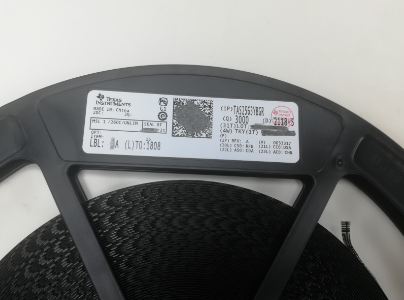

TAS2563YBGR COUNTRY OF ORIGIN
|
TAS2563YBGR PARAMETRIC INFO
|
TAS2563YBGR PACKAGE INFO
|
TAS2563YBGR MANUFACTURING INFO
|
TAS2563YBGR PACKAGING INFO
|
TAS2563YBGR ECAD MODELS
|
TAS2563YBGR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
|
PARAMETRIC INFO
|
| Amplifier Type |
Class-D |
| Function |
Speaker |
| Input Signal Type |
Single |
| Output Signal Type |
Differential |
| Output Type |
1-Channel Mono |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
1.62 |
| Typical Single Supply Voltage (V) |
1.8 |
| Maximum Single Supply Voltage (V) |
1.95 |
| Minimum Load Resistance (Ohm) |
4 |
| Maximum Load Resistance (Ohm) |
32 |
| Typical Output Power (W) |
12.6 |
| Typical Output Power x Channels @ Load (W) |
12.6x1@4Ohm |
| Typical PSRR (dB) |
100 |
| Total Harmonic Distortion Noise |
0.01%@8Ohm@1W |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
DSBGA |
| Pin Count |
42 |
| PCB |
42 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
3.02(Max) |
| Package Width (mm) |
2.56(Max) |
| Package Height (mm) |
0.3(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.5(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
BGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
SnAgCu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
| • Smart Phone, Tablets and Laptops |
| • Smart Speakers with Voice Assistance |
| • Bluetooth and Wireless Speakers |
| • Smart Home |
| • IP Camera |
| |
