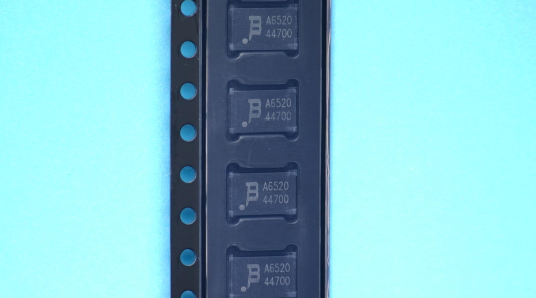

TBU-CA065-200-WH Bourns SURGE SUPP TBU 200MA 650VIMP SMD

label:
2025/02/21 172
TBU-CA065-200-WH Bourns SURGE SUPP TBU 200MA 650VIMP SMD


CATALOG
TBU-CA065-200-WH COUNTRY OF ORIGIN
TBU-CA065-200-WH PARAMETRIC INFO
TBU-CA065-200-WH PACKAGE INFO
TBU-CA065-200-WH MANUFACTURING INFO
TBU-CA065-200-WH PACKAGING INFO
TBU-CA065-200-WH ECAD MODELS


COUNTRY OF ORIGIN
China
Philippines


PARAMETRIC INFO
Direction Type Bi-Directional
Maximum Impulse Voltage (V) 650
Maximum RMS Voltage (V) 300
Typical Reset Voltage (V) 16
Typical Trigger Current (mA) 300
Typical Quiescent Current (mA) 0.5
Maximum Blocking Time (us) 1
Maximum TBU Resistance (Ohm) 9.8
Number of Elements per Chip 1
Maximum Operating Temperature (°C) 125
Minimum Operating Temperature (°C) -55
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150


PACKAGE INFO
Mounting Surface Mount
Package Type DFN
Number of Terminals 3
Product Length (mm) 6.5
Product Depth (mm) 4
Product Height (mm) 0.8


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 20 to 40
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Sn
Under Plating Material N/A
Terminal Base Material N/A


PACKAGING INFO
Packaging Tape and Reel
Quantity Of Packaging 3000
Packaging Document Link to Datasheet

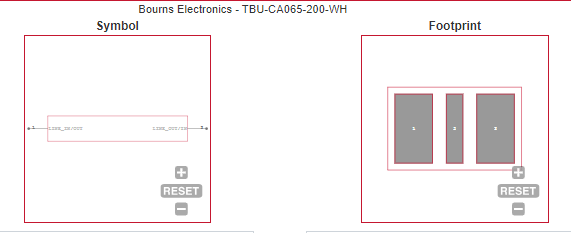

ECAD MODELS
