• Superior circuit protection
|
• Overcurrent and overvoltage protection
|
• Blocks surges up to rated limits
|
| • High-speed performance |
| • Small SMT package |
| |
| CATALOG |
| TBU-CA085-050-WH COUNTRY OF ORIGIN |
TBU-CA085-050-WH PARAMETRIC INFO
|
TBU-CA085-050-WH PACKAGE INFO
|
TBU-CA085-050-WH MANUFACTURING INFO
|
TBU-CA085-050-WH PACKAGING INFO
|
TBU-CA085-050-WH EACD MODELS
|
| TBU-CA085-050-WH APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Korea (Republic of) |
| China |
| Philippines |
|
PARAMETRIC INFO
|
| Configuration |
Bi-Directional |
| Maximum Impulse Voltage (V) |
850 |
| Maximum RMS Voltage (V) |
425 |
| Typical Reset Voltage (V) |
16 |
| Typical Trigger Current (mA) |
75 |
| Typical Quiescent Current (mA) |
0.5 |
| Maximum Blocking Time (us) |
1 |
| Maximum TBU Resistance (Ohm) |
24.5 |
| Number of Elements per Chip |
1 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Package Type |
DFN |
| Number of Terminals |
3 |
| Product Length (mm) |
6.5 |
| Product Depth (mm) |
4 |
| Product Height (mm) |
0.85 |
|
| |
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |

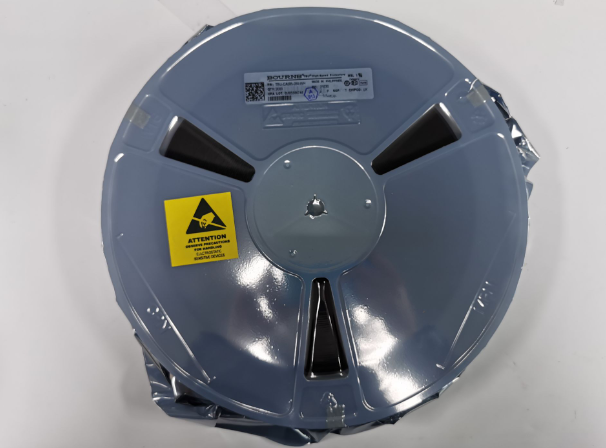

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|

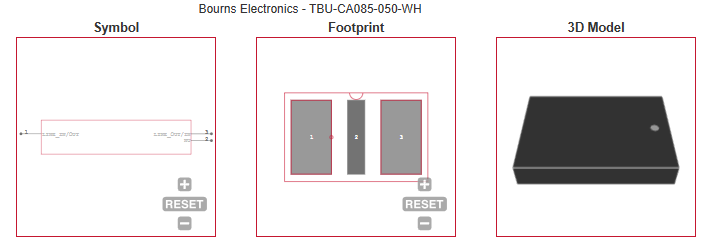

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Voice / VDSL cards |
| • Protection modules and dongles |
| • Process control equipment |
| • Test and measurement equipment |
| • General electronics |
