TCAN1042GVDRQ1 Texas Instruments IC TXRX CAN FAULT PROTECT 8SOIC

label:

2023/11/30 342

• AEC-Q100 (grade 1): Qualified for automotive applications

• Meets the ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards

• Functional Safety-Capable
– Documentation available to aid functional safety system design

• 'Turbo' CAN:
– All devices support classic CAN and 2 Mbps CAN FD (flexible data rate) and "G" options support 5 Mbps
– Short and symmetrical propagation delay times and fast loop times for enhanced timing margin
– Higher data rates in loaded CAN networks

• EMC performance: supports SAE J2962-2 and IEC 62228-3 (up to 500 kbps) without common mode choke

• I/O Voltage range supports 3.3 V and 5 V MCUs

• Ideal passive behavior when unpowered
– Bus and logic terminals are high impedance (no load)
– Power up/down with glitch free operation on bus and RXD output

• Protection features
– IEC ESD protection up to ±15 kV
– Bus Fault protection: ±58 V (non-H variants) and ±70 V (H variants)
– Undervoltage protection on VCC and VIO (V variants only) supply terminals
– Driver dominant time out (TXD DTO)
- Data rates down to 10 kbps
– Thermal shutdown protection (TSD)

• Receiver common mode input voltage: ±30 V

• Typical loop delay: 110 ns

• Junction temperatures from –55°C to 150°C

• Available in SOIC(8) package and leadless VSON (8) package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI) capability

CATALOG

TCAN1042GVDRQ1 COUNTRY OF ORIGIN

TCAN1042GVDRQ1 PARAMETRIC INFO

TCAN1042GVDRQ1 PACKAGE INFO

TCAN1042GVDRQ1 MANUFACTURING INFO

TCAN1042GVDRQ1 PACKAGING INFO

TCAN1042GVDRQ1 ECAD MODELS

TCAN1042GVDRQ1 FUNCTIONAL BLOCK DIAGRAM

TCAN1042GVDRQ1 APPLICATIONS

COUNTRY OF ORIGIN

Malaysia

Mexico

PARAMETRIC INFO

Category	Transceiver
Maximum Data Rate	5Mbps
Standard Supported	ISO 11898-2\|ISO 11898-5
Number of Transceivers	1
Power Down Mode	Normal\|Standby
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65
Typical Operating Supply Voltage (V)	5
Minimum Operating Supply Voltage (V)	4.5
Maximum Operating Supply Voltage (V)	5.5
Maximum Supply Current (mA)	110
Manufacture Type	High Speed CAN Transceiver

PACKAGE INFO

Supplier Package	SOIC
Basic Package Type	Lead-Frame SMT
Pin Count	8
Lead Shape	Gull-wing
PCB	8
Tab	N/R
Pin Pitch (mm)	1.27
Package Length (mm)	5(Max)
Package Width (mm)	3.98(Max)
Package Height (mm)	1.5(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5(Max)
Package Overall Width (mm)	6.19(Max)
Package Overall Height (mm)	1.75(Max)
Seated Plane Height (mm)	1.75(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Small Outline IC
Package Family Name	SO
Jedec	MS-012AA
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy

PACKAGING INFO

Packaging Suffix	R
Packaging	Tape and Reel
Quantity Of Packaging	2500
Reel Diameter (in)	13
Tape Pitch (mm)	8
Tape Width (mm)	12
Component Orientation	Q1
Packaging Document	Link to Datasheet
Tape Type	Embossed

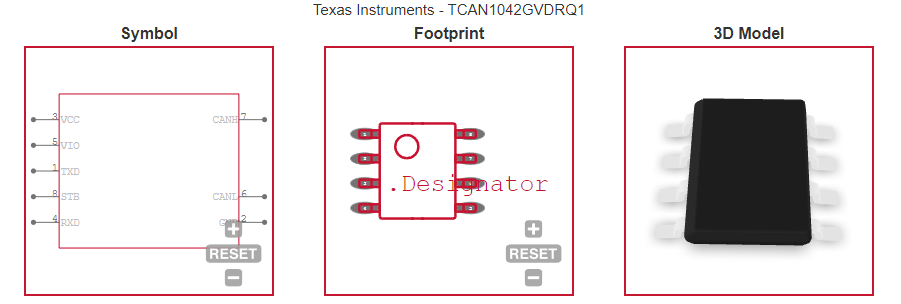

ECAD MODELS

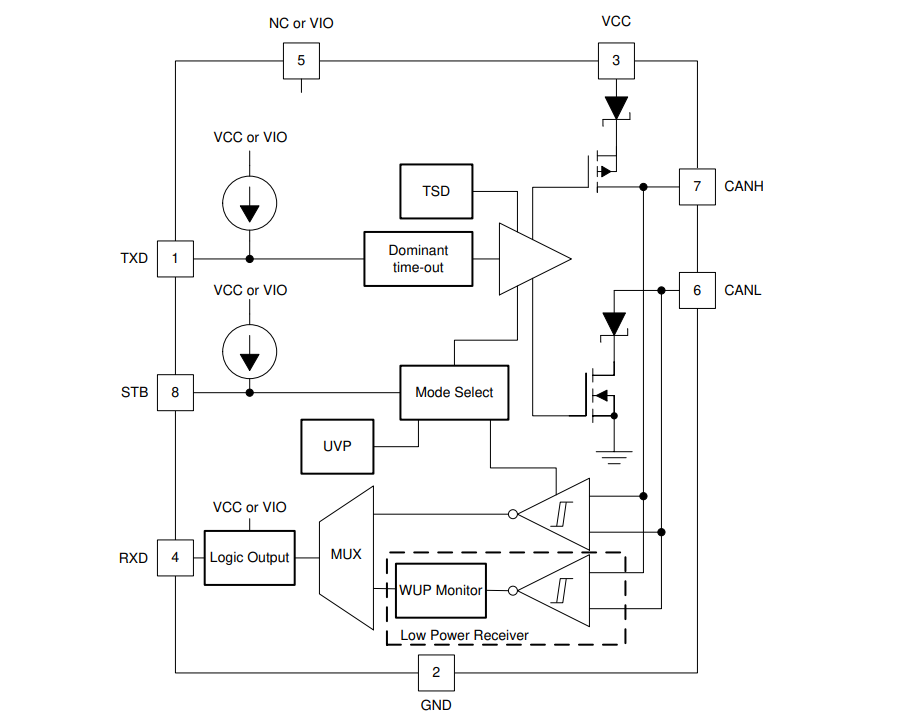

FUNCTIONAL BLOCK DIAGRAM

APPLICATIONS

• Automotive and Transportation

• All devices support highly loaded CAN networks

• Heavy machinery ISOBUS applications – ISO 11783

• SAE J2284 High-speed CAN for automotive applications

• GMW3122 Dual-wire CAN physical layer

• Meets requirements of SAE J2962, GIFT/ICT, ISO16845
