TCAN1044AVDRBRQ1 Texas Instruments Automotive Fault-Protected CAN FD Transceiver with Standby mode

Category	Transceiver
Maximum Data Rate	8Mbps
Standard Supported	ISO 11898-2
Number of Transceivers	1
Power Down Mode	Normal\|Standby
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	150
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-65
Typical Operating Supply Voltage (V)	5
Minimum Operating Supply Voltage (V)	4.5
Maximum Operating Supply Voltage (V)	5.5
Maximum Supply Current (mA)	130

Supplier Package	VSON EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	8
Lead Shape	No Lead
PCB	8
Tab	N/R
Pin Pitch (mm)	0.65
Package Length (mm)	3.1(Max)
Package Width (mm)	3.1(Max)
Package Height (mm)	0.95(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	3.1(Max)
Package Overall Width (mm)	3.1(Max)
Package Overall Height (mm)	1(Max)
Seated Plane Height (mm)	1(Max)
Mounting	Surface Mount
Terminal Width (mm)	0.36(Max)
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Very Thin Small Outline No Lead, Exposed Pad
Package Family Name	SON
Jedec	N/A
Package Outline	Link to Datasheet
Maximum PACKAGE_DIMENSION_H	0.95
Minimum PACKAGE_DIMENSION_H	N/A
Maximum PACKAGE_DIMENSION_L	3.1
Minimum PACKAGE_DIMENSION_L	2.9
Maximum PACKAGE_DIMENSION_W	3.1
Minimum PACKAGE_DIMENSION_W	2.9
Maximum Diameter	N/R
Minimum Diameter	N/R
Maximum Seated_Plane_Height	1
Minimum Seated_Plane_Height	N/A

Packaging

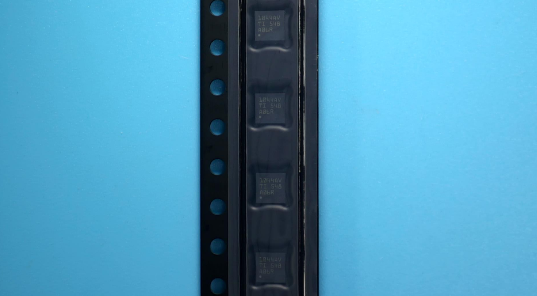

Tape and Reel

• Automotive and transportation– Body control modules– Automotive gateway– Advanced driver assistance system (ADAS)– Infotainment
