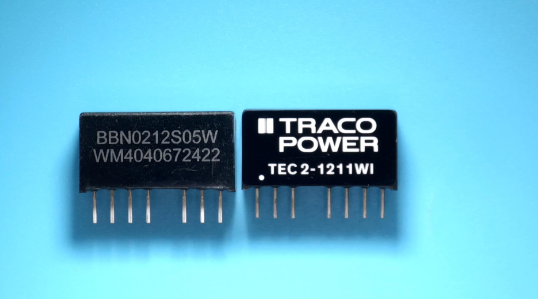

TEC 2-1211WI TRACO Power DC DC CONVERTER 5V 2W


CATALOG
TEC 2-1211WI COUNTRY OF ORIGIN
TEC 2-1211WI PARAMETRIC INFO
TEC 2-1211WI PACKAGE INFO
TEC 2-1211WI PACKAGING INFO
TEC 2-1211WI ECAD MODELS


COUNTRY OF ORIGIN
Taiwan (Province of China)


PARAMETRIC INFO
Isolation Isolated
Type Step Down
Number of Outputs 1
Output Voltage (V) 5
Maximum Output Power (W) 2
Maximum Output Current (A) 0.4
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 93
Minimum Isolation Voltage 1600VDC
Switching Regulator Yes
Minimum Input Voltage (V) 4.5
Typical Input Voltage (V) 12
Maximum Input Voltage (V) 18
Output Type Fixed
Efficiency (%) 80(Typ)
Load Regulation 1%
Switching Frequency (kHz) 100(Min)
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 125
On/Off Logic Positive


PACKAGE INFO
Supplier Package SIP Module
Pin Count 7
PCB 7
Tab N/R
Package Length (mm) 21.8
Package Width (mm) 9.1
Package Height (mm) 11.2
Package Diameter (mm) N/R
Mounting Through Hole
Package Family Name SIP
Package Outline Link to Datasheet


PACKAGING INFO
Packaging Document Link to Datasheet

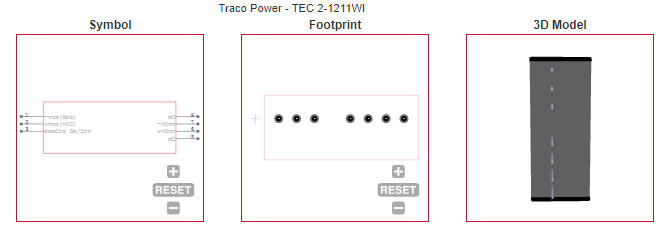

ECAD MODELS
