THCV215 THine Electronics IC SERIALIZER DUAL 64TSSOP

2025/06/16 85

• Color depth selectable: 6/8/10/12 bit

• Single/Dual Link selectable

• AC coupling

• LVDS input internal termination

• CORE 1.8V, LVDS 3.3V

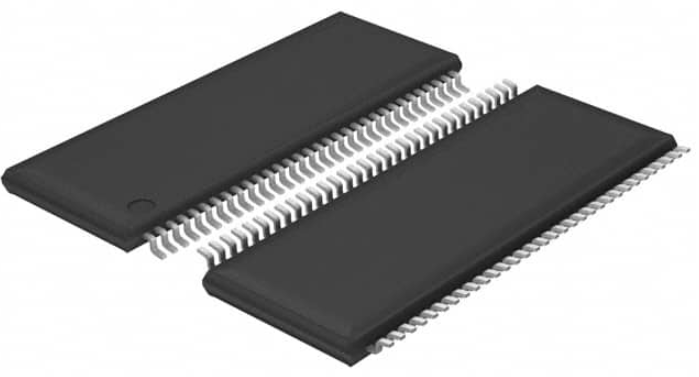

• Package: 64 pin TSSOP

• Wide frequency range

• CDR requires no external frequency reference

CATALOG

Japan

Category	Transceiver
Maximum RF Operating Frequency Range (MHz)	0.04 to 100
Maximum Data Rate	3.75Gbps
Maximum Power Dissipation (mW)	2000
Operating Band Frequency (MHz)	20 to 100
Maximum RF Operating Frequency (MHz)	100
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	70
Maximum Storage Temperature (°C)	125
Minimum Storage Temperature (°C)	-55
Typical Operating Supply Voltage	1.8V\|3.3V
Minimum Operating Supply Voltage	1.62V\|3V
Operating Supply Voltage	1.8V\|3.3V
Maximum Operating Supply Voltage	1.98V\|3.6V
