• Ultra-Low 1.6 nV/√Hz Voltage Noise
|
• High Speed:
– 100-MHz Bandwidth [G = 2 (–1), –3 dB]
– 100-V/μs Slew Rate
|
• Very Low Distortion
– THD = –72 dBc (f = 1 MHz, RL = 150 Ω)
– THD = –90 dBc (f = 1 MHz, RL = 1 kΩ)
|
• Low 0.5-mV (Typical) Input Offset Voltage
|
• 90-mA Output Current Drive (Typical)
|
• Typical Operation from ±5 V to ±15 V
|
• Available in Standard SOIC and MSOPPowerPAD™, Package
|
|
CATALOG |
THS4031IDR COUNTRY OF ORIGIN |
THS4031IDR PARAMETRIC INFO
|
THS4031IDR PACKAGE INFO
|
THS4031IDR MANUFACTURING INFO
|
THS4031IDR PACKAGING INFO
|
THS4031IDR ECAD MODELS
|
THS4031IDR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China) |
|
PARAMETRIC INFO
|
Manufacturer Type |
High Speed Amplifier |
Type |
High Speed Amplifier |
Minimum Single Supply Voltage (V) |
9 |
Number of Channels per Chip |
1 |
Process Technology |
BiCOM |
Minimum PSRR (dB) |
85 |
Typical Single Supply Voltage (V) |
12|15|18|24|28 |
Maximum Single Supply Voltage (V) |
32 |
Minimum Dual Supply Voltage (V) |
±4.5 |
Typical Gain Bandwidth Product (MHz) |
120 |
Maximum Input Offset Voltage (mV) |
2@±5V |
Typical Dual Supply Voltage (V) |
±5|±9|±12|±15 |
Maximum Input Offset Current (uA) |
0.25@±5V |
Maximum Dual Supply Voltage (V) |
±16 |
Maximum Operating Supply Voltage (V) |
±16|32 |
Maximum Input Bias Current (uA) |
6@±5V |
Minimum CMRR (dB) |
90 |
Maximum Supply Voltage Range (V) |
32 to 36 |
Minimum CMRR Range (dB) |
90 to 95 |
Typical Voltage Gain (dB) |
95 |
Typical Slew Rate (V/us) |
80@±5V |
Typical Settling Time (ns) |
80 |
Typical Output Current (mA) |
70@±5V |
Typical Input Noise Voltage Density (nV/rtHz) |
1.6@±5V |
Typical Noninverting Input Current Noise Density (pA/rtHz) |
1.2@±5V |
Shut Down Support |
No |
Minimum Operating Temperature (°C) |
-40 |
Maximum Operating Temperature (°C) |
85 |
Power Supply Type |
Single|Dual |
Maximum Supply Current (mA) |
9@±5V |
Maximum Power Dissipation (mW) |
629 |
|
|
PACKAGE INFO
|
Supplier Package |
SOIC |
Basic Package Type |
Lead-Frame SMT |
Pin Count |
8 |
Lead Shape |
Gull-wing |
PCB |
8 |
Tab |
N/R |
Pin Pitch (mm) |
1.27 |
Package Length (mm) |
5(Max) |
Package Width (mm) |
3.98(Max) |
Package Height (mm) |
1.5(Max) |
Package Diameter (mm) |
N/R |
Package Overall Length (mm) |
5(Max) |
Package Overall Width (mm) |
6.19(Max) |
Package Overall Height (mm) |
1.75(Max) |
Seated Plane Height (mm) |
1.75(Max) |
Mounting |
Surface Mount |
Package Weight (g) |
N/A |
Package Material |
Plastic |
Package Description |
Small Outline IC |
Package Family Name |
SO |
Jedec |
MS-012AA |
Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
MSL |
1 |
Maximum Reflow Temperature (°C) |
260 |
Reflow Solder Time (Sec) |
30 |
Number of Reflow Cycle |
3 |
Standard |
J-STD-020D |
Reflow Temp. Source |
Link to Datasheet |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Lead Finish(Plating) |
Au |
Under Plating Material |
Pd over Ni |
Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
Packaging Suffix |
R |
Packaging |

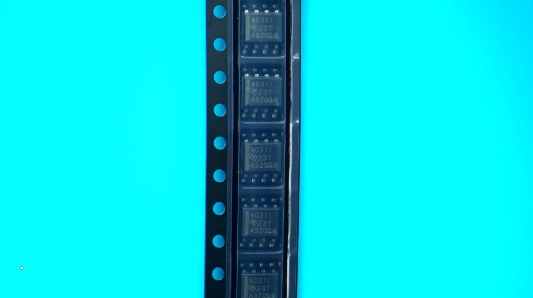

Tape and Reel |
Quantity Of Packaging |
2500 |
Reel Diameter (in) |
13 |
Tape Pitch (mm) |
8 |
Tape Width (mm) |
12 |
Component Orientation |
Q1 |
Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|

|
|
APPLICATIONS
|
• Low-Noise, Wideband Amplifier for Industrial
Applications
|
• Voltage-Controlled Oscillators
|
• Active Filters
|
• Video Amplifiers
|
• Cable Drivers
|
