• Isolator and Transceiver integrated into a single SO16 package, reducing board space
|
• ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
|
• Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
|
| • Flawless cooperation between the Isolator and the Transceiver
|
| • Electrical transient immunity of 45 kV/s (typ) |
| • AEC-Q100 qualified |
| • Suitable for use in 12 V and 24 V systems; compatible with 3 V to 5 V microcontrollers |
| • Bus common mode voltage (Vcm) = 25 V |
| • Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI) |
| • Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)compliant) |
|
| CATALOG |
| TJA1052IT/5Y COUNTRY OF ORIGIN |
TJA1052IT/5Y PARAMETRIC INFO
|
TJA1052IT/5Y PACKAGE INFO
|
TJA1052IT/5Y MANUFACTURING INFO
|
TJA1052IT/5Y PACKAGING INFO
|
TJA1052IT/5Y EACD MODELS
|
| TJA1052IT/5Y FUNCTION BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| Thailand |
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum Data Rate |
5Mbps |
| Standard Supported |
ISO6469 |
| Number of Transceivers |
1 |
| Power Down Mode |
Standby |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Rating |
car |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Typical Operating Supply Voltage (V) |
1.8|3.3 |
| Minimum Operating Supply Voltage (V) |
1.3|3.5 |
| Maximum Operating Supply Voltage (V) |
2.7|4.75 |
| Maximum Supply Current (mA) |
70 |
| Manufacture Type |
Isolated CAN Transceiver |
|
|
PACKAGE INFO
|
| Supplier packaging |
SO |
| Number of pins |
16 |
| PCB |
16 |
| ears |
N/R |
| Package length (mm) |
10.5(Max) |
| Package width (mm) |
7.6(Max) |
| Package height (mm) |
2.45(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Package series name |
SO |
| JEDEC |
MS-013 |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
ikB |
| Terminal Base Material |
Cu Alloy |
|
|

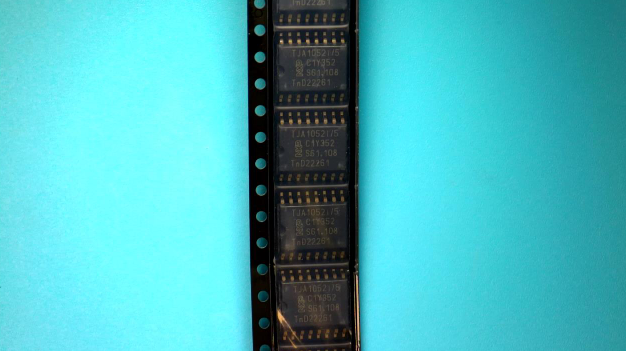

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
|
|

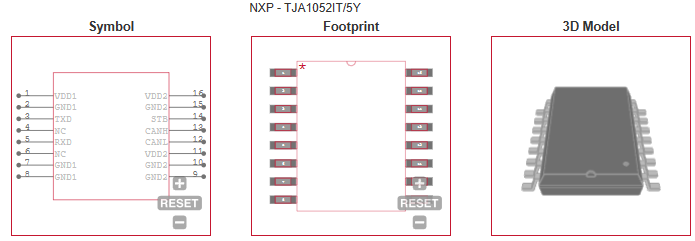

ECAD MODELS
|
|
|

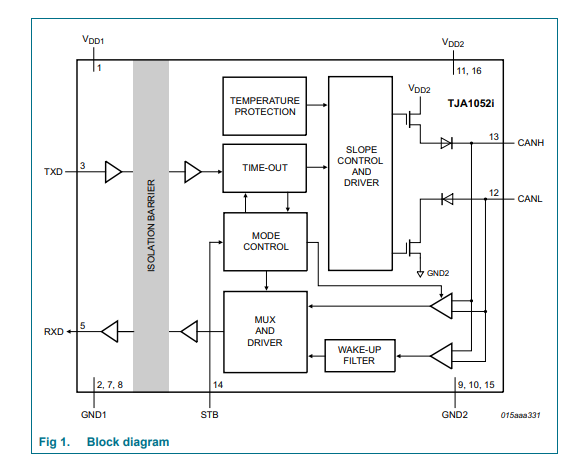

FUNCTION BLOCK DIAGRAM
|
|
| |
