TL431LIAQDBZR COUNTRY OF ORIGIN
|
TL431LIAQDBZR PACKAGE INFO
|
TL431LIAQDBZR MANUFACTURING INFO
|

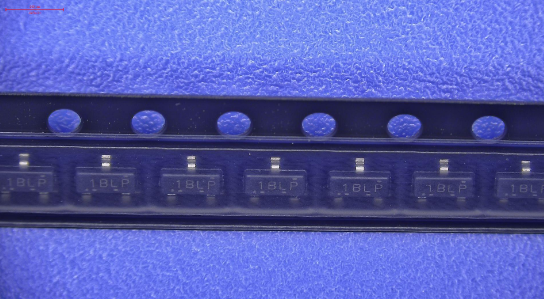

TL431LIAQDBZR PACKAGING INFO
|
| TL431LIAQDBZR MANUFACTURING INFO |
| TL431LIAQDBZR ECAD MODELS |
| TL431LIAQDBZR APPLICATIONS |
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
|
PARAMETRIC INFO
|
| Topology |
Shunt |
| Reference Type |
Adjustable |
| Output Voltage (V) |
2.495 to 36 |
| Initial Accuracy |
1% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Input Voltage (V) |
37 |
| Maximum Output Current (mA) |
15 |
| Maximum Temperature Coefficient |
63ppm/°C |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.04(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.04(Max) |
| Package Overall Width (mm) |
2.64(Max) |
| Package Overall Height (mm) |
1.12(Max) |
| Seated Plane Height (mm) |
1.12(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
N/A|Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
|
|
| APPLICATIONS |
• Adjustable Voltage and Current Referencing
|
| • Secondary Side Regulation in Flyback SMPS |
| • Zener Diode Replacement |
| • Voltage Monitoring |
| • Precision Constant Current Sink/Source |
| • Comparator with Integrated Reference |
| |
