| • Qualified for Automotive Applications |
| • Output Voltage of 5 V ±2% |
| • Very Low Current Consumption |
| • Very Low Dropout Voltage |
| • Short-Circuit Protection |
| • Reverse-Polarity Protection |
| • ESD Protection > 6 kV |
|
| CATALOG |
| TL720M05QKVURQ1 COUNTRY OF ORIGIN |
| TL720M05QKVURQ1 PARAMETRIC INFO |
| TL720M05QKVURQ1 PACKAGE INFO |
| TL720M05QKVURQ1 MANUFACTURING INFO |
| TL720M05QKVURQ1 PACKAGING INFO |
| TL720M05QKVURQ1 ECAD MODELS |
| TL720M05QKVURQ1 FUNCTIONAL BLOCK DIAGRAM |
| TL720M05QKVURQ1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
45.3°C/W |
| Junction to Case |
36.8°C/W |
| Polarity |
Positive |
| Special Features |
ESD Protection|Reverse Polarity Protection|Short Circuit Protection|Thermal Protection |
| Load Regulation |
30mV |
| Line Regulation |
15mV |
| Maximum Dropout Voltage @ Current (V) |
0.5@300mA |
| Minimum Input Voltage (V) |
5.5 |
| Maximum Input Voltage (V) |
42 |
| Output Voltage (V) |
5 |
| Typical Dropout Voltage @ Current (V) |
0.25@300mA |
| Accuracy (%) |
±2 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
20 |
|
| PACKAGE INFO |
| Supplier Package |
TO-252 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.29 |
| Package Length (mm) |
6.7(Max) |
| Package Width (mm) |
6.22(Max) |
| Package Height (mm) |
2.39(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.7(Max) |
| Package Overall Width (mm) |
10.41(Max) |
| Package Overall Height (mm) |
2.52(Max) |
| Seated Plane Height (mm) |
2.52(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO-252 |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|

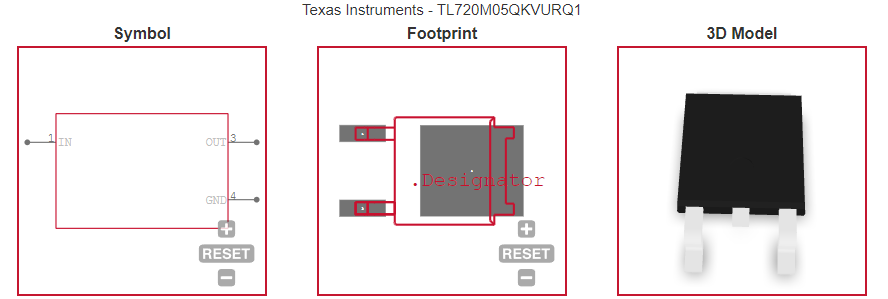

| ECAD MODELS |
 |
|

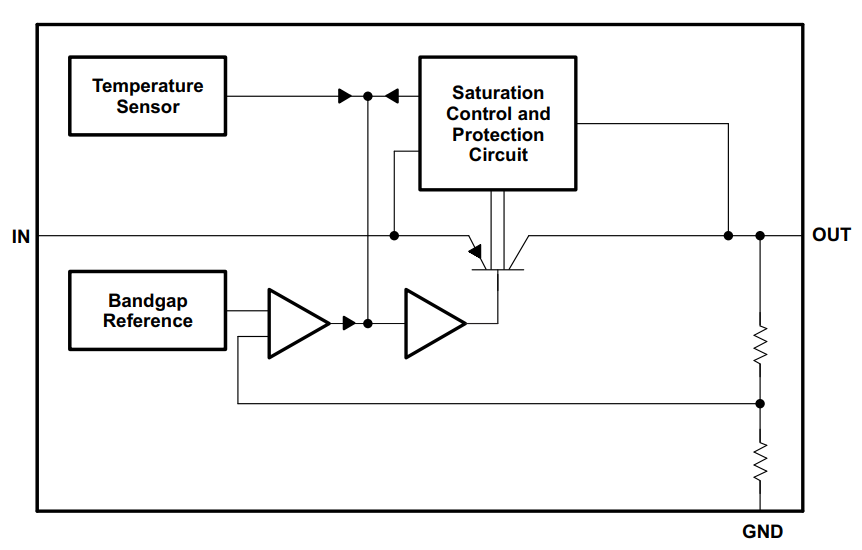

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Qualified for Automotive Applications |
| • Cluster |
| • Body Control Modules |
|
