• Industry’s Lowest-Cost 12-Bit Delta-Sigma ADCs
|
• Ultra-Small X2QFN Package: 2 mm × 1.5 mm
|
• Highly Integrated:– 4 Single-Ended or 2 Differential Inputs Make the TLA2024 the Industry’s Highest Channel Density ADC (0.75 mm² per Channel)
– PGA (TLA2022 and TLA2024 Only)– Voltage Reference– Oscillator
|
| • Low Current Consumption: 150 µA |
| • Wide Supply Range: 2 V to 5.5 V |
| • Programmable Data Rate: 128 SPS to 3.3 kSPS |
| • I2C™ Compatible Interface:– Supports Standard-Mode and Fast-Mode– Three Pin-Selectable I2C Addresses |
| • Operating Temperature Range: –40°C to +85°C |
| |
| CATALOG |
| TLA2024IRUGT COUNTRY OF ORIGIN |
TLA2024IRUGT PARAMETRIC INFO
|
TLA2024IRUGT PACKAGE INFO
|
TLA2024IRUGT MANUFACTURING INFO
|
TLA2024IRUGT PACKAGING INFO
|
TLA2024IRUGT EACD MODELS
|
| TLA2024IRUGT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| China |
| Philippines |
| |
PARAMETRIC INFO
|
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
Delta-Sigma |
| Resolution |
12bit |
| Number of ADCs |
1 |
| Sampling Rate |
3.3ksps |
| Digital Interface Type |
Serial (2-Wire, I2C) |
| Voltage Reference |
Internal |
| Minimum Positive Supply Voltage (V) |
2 |
| Input Signal Type |
Single-Ended|Differential |
| Maximum Positive Supply Voltage (V) |
5.5 |
| Polarity of Input Voltage |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-60 |
| Maximum Storage Temperature (°C) |
125 |
| Integral Nonlinearity Error |
1LSB(Typ) |
| Sample and Hold |
Yes |
| Number of Input Channels |
4|2 |
| Single-Ended Input |
Yes |
| Differential Input |
Yes |
| Input Voltage |
±6.144V |
| Maximum Supply Current (mA) |
0.15(Typ) |
| No Missing Codes (bit) |
12 |
| Full Scale Error |
0.05%FSR(Typ) |
| Voltage Supply Source |
Single |
| Minimum Single Supply Voltage (V) |
2 |
| Typical Single Supply Voltage (V) |
3.3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Digital Supply Support |
No |
| Typical Power Dissipation (mW) |
0.9 |
| Serial Interface |
Serial I2C |
|
|
PACKAGE INFO
|
| Supplier Package |
X2QFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
No Lead |
| PCB |
10 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
2.05(Max) |
| Package Width (mm) |
1.55(Max) |
| Package Height (mm) |
0.35(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.05(Max) |
| Package Overall Width (mm) |
1.55(Max) |
| Package Overall Height (mm) |
0.4(Max) |
| Seated Plane Height (mm) |
0.4(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package |
| Package Family Name |
QFN |
| Jedec |
MO-288X2EFD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

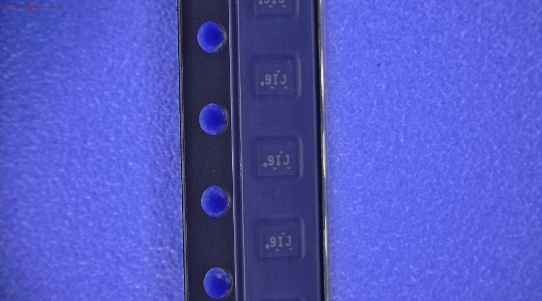

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Reel Diameter (in) |
7.09 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
| APPLICATIONS |
| • Personal Electronics:– TVs, Tablets, Cell Phones– Wearables– Drones, Toys |
| • Digital power |
| • Home and Kitchen Appliances |
| • Building Automation:– HVACs, Smoke Detectors |
| • Battery Voltage and Current Monitoring |
| • Temperature Sensing |
| • Battery-Powered, Portable Instrumentation |
| |
