• PWM/DIR-interface drives 4 N-Channel Power MOSFETs
|
• Unlimited D.C. switch on time of low and high-side MOSFETs
|
• 0 … 95% at 20 kHz & 100% duty cycle of high-side MOSFETs
|
| • 0 … 100% duty cycle of low-side MOSFETs
|
| • Additional output to drive a reverse polarity protection N-MOSFET |
| • Current sense OPAMP |
| • Low quiescent current mode |
| • Internal shoot through protection |
| • Adjustable dead time |
| • 1-bit diagnosis / ERR |
| • Overcurrent warning based on current sense OPAMP with fixed warning level |
| • Analog adjustable short circuit protection levels via SCDL pin with open pin detection |
| • Overtemperature warning |
| • Overvoltage warning |
| • Undervoltage warning and shutdown |
| • Green Product (RoHS compliant） |
|
| CATALOG |
| TLE7181EMXUMA1 COUNTRY OF ORIGIN |
TLE7181EMXUMA1 PARAMETRIC INFO
|
TLE7181EMXUMA1 PACKAGE INFO
|
TLE7181EMXUMA1 MANUFACTURING INFO
|
TLE7181EMXUMA1 PACKAGING INFO
|
TLE7181EMXUMA1 ECAD MODELS
|
| TLE7181EMXUMA1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
Motor Driver |
| Maximum Operating Current (mA) |
45 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Operating Supply Voltage (V) |
7 |
| Operating Supply Voltage (V) |
7 to 34 |
| Maximum Operating Supply Voltage (V) |
34 |
| Maximum Power Dissipation (mW) |
2000 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Output Configuration |
H-Bridge |
| Motor Type |
Brush DC Motor |
| Number of Phases |
2 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SSOP EP |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
twenty four |
| Pin shape |
Gull-wing |
| PCB |
twenty four |
| ears |
N/R |
| Pin spacing (mm) |
0.65 |
| Package length (mm) |
8.65 |
| Package width (mm) |
3.9 |
| Package height (mm) |
1.47 |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.7(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Shrink Small Outline Package, Exposed Pad |
| Package series name |
SO |
| JEDEC |
MO-137AE |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
20 to 40 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020C |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
not applicable |
|
|

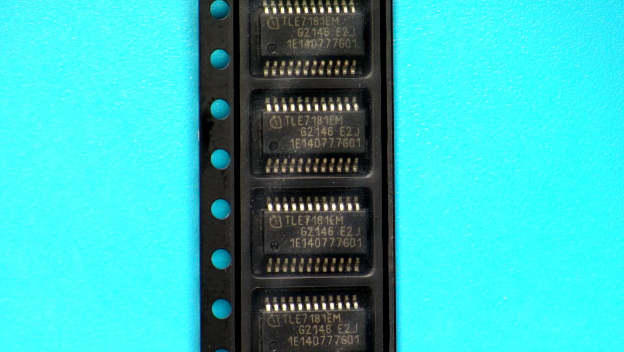

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
2500 |
|
|

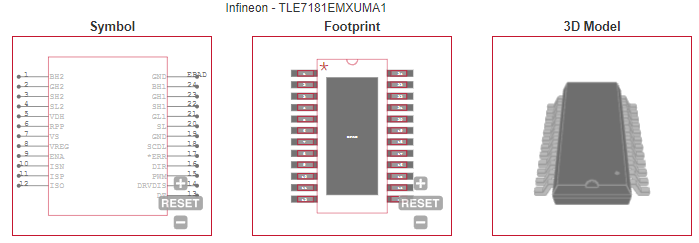

ECAD MODELS
|
|
|
APPLICATIONS
|
• General automotive applications.
|
|
| |
| |
