• Output voltage options: 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable
|
• Output current: 800 mA
|
• Specified dropout voltage at multiple current levels
|
| • Line regulation maximum: 0.2%
|
| • Load regulation maximum: 0.4% |
| • For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761 |
|
| CATALOG |
| TLV1117-33IDCYR COUNTRY OF ORIGIN |
TLV1117-33IDCYR PARAMETRIC INFO
|
TLV1117-33IDCYR PACKAGE INFO
|
TLV1117-33IDCYR MANUFACTURING INFO
|
TLV1117-33IDCYR PACKAGING INFO
|
TLV1117-33IDCYR EACD MODELS
|
| TLV1117-33IDCYR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| China Hong Kong |
| Malaysia |
| Thailand |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.8 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to ambient |
104.3°C/W |
| Junction to Case |
53.7°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Protection |
| Load Regulation |
0.4% |
| Line Regulation |
0.2% |
| Maximum Quiescent Current (mA) |
15 |
| Maximum Dropout Voltage @ Current (V) |
1.2@100mA|1.25@500mA|1.3@800mA |
| Minimum Input Voltage (V) |
4.7 |
| Maximum Input Voltage (V) |
15 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
5 |
| Typical Dropout Voltage @ Current (V) |
1.1@100mA|1.15@500mA|1.2@800mA |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
75 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-223 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.3 |
| Package length (mm) |
6.7(Max) |
| Package width (mm) |
3.7(Max) |
| Package height (mm) |
1.7(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.8(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
TO-261AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
|

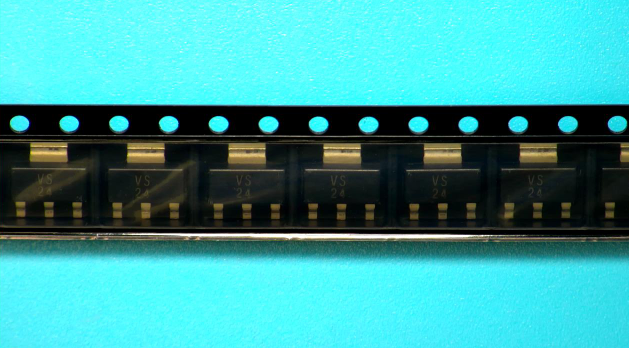

PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| Packing quantity |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q3 |
| packaging type file |
Link to datasheet |
|
|

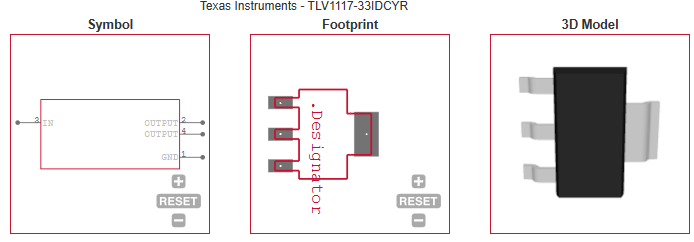

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Electronic points of sale |
| • Medical, health, and fitness applications |
| • Printers |
| • Appliances and white goods |
| • TV set-top boxes |
| |
