• Qualified for Automotive Applications
|
• AEC Q100-Qualified With the Following Results– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature– Device HBM ESD Classification Level 2(TLV1701-Q1)– Device HBM ESD Classification Level 1C (TLV1702-Q1,TLV1704-Q1)– Device CDM ESD Classification Level C6
|
• Supply Range: 2.2 V to 36 V or ±1.1 V to ±18 V
|
• Low Quiescent Current: 55 µA per Comparator
|
• Input Common-Mode Range Includes Both Rails
|
• Low Propagation Delay: 560 ns
|
• Low Input Offset Voltage: 300 µV
|
• Open Collector Outputs:– Up to 36 V Above Negative Supply Regardless of Supply Voltage
|
• Industrial Temperature Range: –40°C to +125°C
|
• Small Packages:– Single: SOT23-5 and SC-70-5– Dual: VSSOP-8– Quad: TSSOP-14
|
|
| CATALOG |
TLV1701AQDCKRQ1 COUNTRY OF ORIGIN
|
TLV1701AQDCKRQ1 PARAMETRIC INFO
|
TLV1701AQDCKRQ1 PACKAGE INFO
|
TLV1701AQDCKRQ1 MANUFACTURING INFO
|
TLV1701AQDCKRQ1 PACKAGING INFO
|
TLV1701AQDCKRQ1 ECAD MODLES
|
TLV1701AQDCKRQ1 APPPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Rail to Rail |
Rail to Rail Input |
| Manufacturer Type |
Micropower Comparator |
| Process Technology |
Bipolar |
| Typical PSRR (dB) |
96.48 |
| Number of Channels per Chip |
1 |
| Output Type |
Open Collector |
| Maximum Input Offset Voltage (mV) |
2.5@36V |
| Maximum Input Bias Current (uA) |
0.015@36V |
| Strobe Capability |
No |
| Maximum Propagation Delay Time (ns) |
560(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
| Power Supply Type |
Single|Dual |
| Integrated Voltage Reference |
No |
| Maximum Operating Supply Voltage (V) |
±18|36 |
| Integrated OP Amp |
No |
| Minimum Single Supply Voltage (V) |
2.2 |
| Typical Single Supply Voltage (V) |
3|5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±1.1 |
| Typical Dual Supply Voltage (V) |
±3|±5|±9|±12|±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Quiescent Current (mA) |
0.075@36V |
|
|
PACKAGE INFO
|
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.15(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
0.9 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.15(Max) |
| Package Overall Width (mm) |
2.4(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-203 |
| Package Outline |
Link to Datasheet |
| Maximum PACKAGE_DIMENSION_H |
1 |
| Minimum PACKAGE_DIMENSION_H |
N/A |
| Maximum PACKAGE_DIMENSION_L |
2.15 |
| Minimum PACKAGE_DIMENSION_L |
1.85 |
| Maximum PACKAGE_DIMENSION_W |
1.4 |
| Minimum PACKAGE_DIMENSION_W |
1.1 |
| Maximum Diameter |
N/R |
| Minimum Diameter |
N/R |
| Maximum Seated_Plane_Height |
1.1 |
| Minimum Seated_Plane_Height |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|

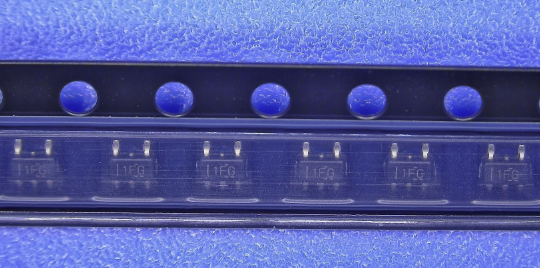

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

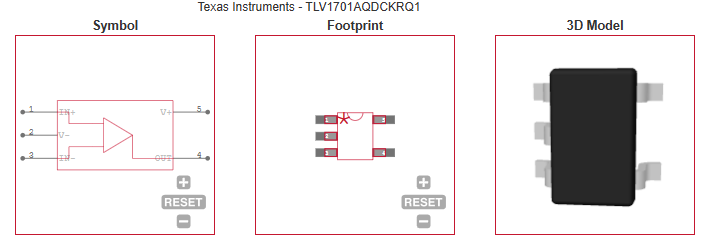

| ECAD MODLES |
|
|
| APPLICATIONS |
• Overvoltage and Undervoltage Detectors
|
• Window Comparators
|
• Overcurrent Detectors
|
• Zero-Crossing Detectors
|
• System Monitoring for:– White Goods– Automotive– Medical
|
|
