• Stereo audio DAC:– 102-dBA signal-to-noise ratio– 16-, 20-, 24-, or 32-bit data– Supports sample rates from 8 kHz to 96 kHz– 3D, bass, treble, EQ, or de-emphasis effects– Flexible power saving modes and performance are available
|
• Stereo audio ADC:– 92-dBA signal-to-noise ratio– Supports sample rates from 8 kHz to 96 kHz– Digital signal processing and noise filtering
available during record
|
• Six audio input pins:– One stereo pair of single-ended inputs– One stereo pair of fully differential inputs
|
| • Six audio output drivers:– Stereo fully differential or single-ended headphone drivers– Fully differential stereo line outputs |
| • Low power: 14-mW stereo 48-kHz playback with 3.3-V analog supply |
| • Ultra-low-power mode with passive analog bypass |
| • Programmable I/O analog gains |
| • Automatic gain control (AGC) for record |
| • Programmable microphone bias level |
| • Programmable PLL for flexible clock generation |
| • I2C control bus |
| • Audio serial data bus supports I2S, left- and rightjustified, DSP, and TDM modes |
| • Extensive modular power control |
| • Power supplies:– Analog: 2.7 V to 3.6 V– Digital Core: 1.525 V to 1.95 V– Digital I/O: 1.1 V to 3.6 V |
| • Package: 5-mm × 5-mm, 32-pin VQFN |
| |
| CATALOG |
| TLV320AIC3104IRHBR COUNTRY OF ORIGIN |
TLV320AIC3104IRHBR PARAMETRIC INFO
|
TLV320AIC3104IRHBR PACKAGE INFO
|
TLV320AIC3104IRHBR MANUFACTURING INFO
|
TLV320AIC3104IRHBR PACKAGING INFO
|
TLV320AIC3104IRHBR EACD MODELS
|
| TLV320AIC3104IRHBR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Thailand |
| Malaysia |
| Philippines |
|
PARAMETRIC INFO
|
| Type |
General Purpose |
| ADC/DAC Resolution (bit) |
24 |
| Number of ADCs |
2 |
| Number of DACs |
2 |
| Interface Type |
Serial (2-Wire, I2C) |
| Sampling Rate (ksps) |
96 |
| Number of Channels |
2ADC / 2DAC |
| Number of ADC Inputs |
3 |
| Number of DAC Outputs |
6 |
| Maximum Power Dissipation (mW) |
500 |
| Signal to Noise Ratio (dB) |
97 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Power Supply Type |
Analog|Digital |
| Typical Operating Supply Voltage (V) |
1.8|3.3 |
| Operating Supply Voltage (V) |
1.8|3.3 |
| Minimum Operating Supply Voltage (V) |
1.1|1.525|2.7 |
| Maximum Operating Supply Voltage (V) |
1.95|3.6 |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
No Lead |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
5.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.1(Max) |
| Package Overall Width (mm) |
5.1(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
MO-220 |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |

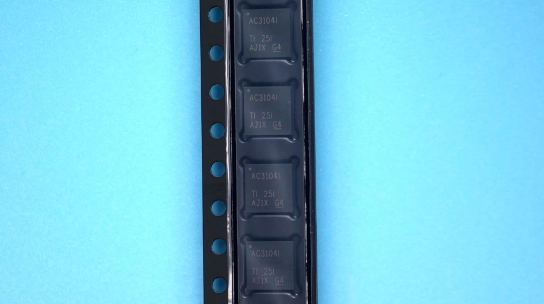

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|

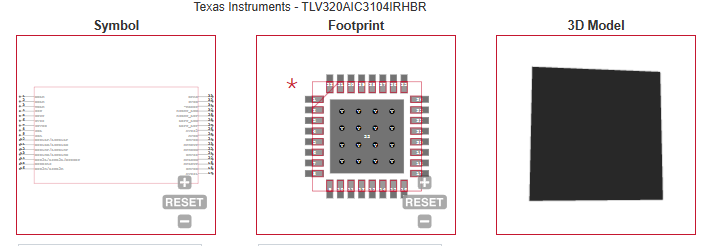

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Headsets |
| • IP network cameras |
| • IP telephones |
| • Wireless speakers |
| |
