• Input voltage range: 1.8 V to 5.5 V, down to 1.6 V
after start-up
|
• Output voltage up to 28 V
|
• Integrated power diode and isolation switch
|
• Up to 85% efficiency at 3.6-V input and 12-V
output
|
• ±2.5% output voltage accuracy
|
• Power save operation mode at light load
|
• Internal 7-ms soft start time
|
• True disconnection between input and output during shutdown
|
• Output short circuit protection
|
• Output overvoltage protection
|
• Thermal shutdown protection
|
• 3-mm × 3-mm SOT23-6 package
|
• Create a custom design using the TLV61046A with
the WEBENCH® Power Designer
|
|
| CATALOG |
TLV61046ADBVR COUNTRY OF ORIGIN
|
TLV61046ADBVR PARAMETRIC INFO
|
TLV61046ADBVR PACKAGE INFO
|
TLV61046ADBVR MANUFACTURING INFO
|
TLV61046ADBVR PACKAGING INFO
|
TLV61046ADBVR ECAD MODELS
|
TLV61046ADBVR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Step Up |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
1.8 |
| Maximum Input Voltage (V) |
5.5 |
| Output Voltage (V) |
3.3 to 28 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
1050(Typ) |
| Efficiency (%) |
85 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
1.8 to 5.5 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
110 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
0.98 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
4 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|

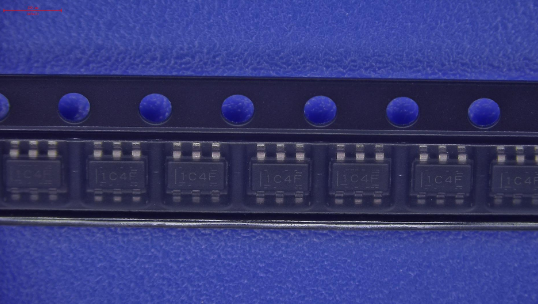

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

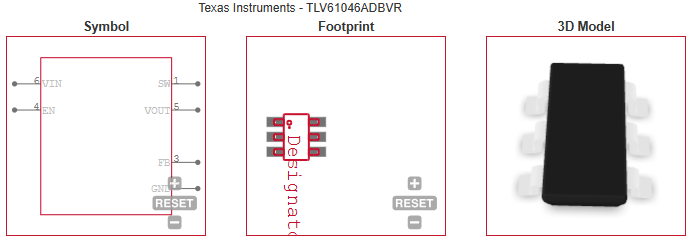

ECAD MODELS
|
|
|
APPLICATIONS
|
• PMOLED power supply
|
| • LCD panel |
| • Wearable devices |
• Portable medical equipment
|
• Sensor power supply
|
|
| |
