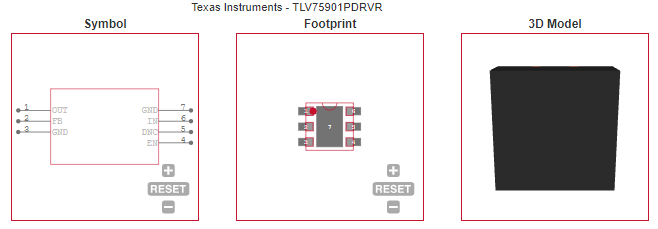

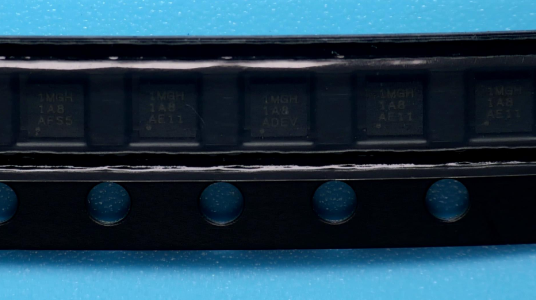

TLV75901PDRVR Texas Instruments TLV759P 1-A High Accuracy Adjustable LDO in a Small Size Package

Type	LDO
Number of Outputs	1
Maximum Output Current (A)	1
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Output Type	Adjustable
Output Voltage Range (V)	<1.8\|1.8 to 10
Junction to Ambient	80.3°C/W
Junction to Case	98.7°C/W
Polarity	Positive
Special Features	Current Limit\|Short Circuit Protection
Load Regulation	0.03V/A(Typ)
Line Regulation	2mV(Typ)
Minimum Input Voltage (V)	1.5
Maximum Input Voltage (V)	6
Output Voltage (V)	0.55 to 5.5
Typical Quiescent Current (mA)	0.025
Accuracy (%)	±0.7
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Typical PSRR (dB)	45
Typical Output Capacitance (uF)	1(Min)
Typical Output Noise Voltage (uVrms)	53

Supplier Package	WSON EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	6
Lead Shape	No Lead
PCB	6
Tab	N/R
Pin Pitch (mm)	0.65
Package Length (mm)	2.1(Max)
Package Width (mm)	2.1(Max)
Package Height (mm)	0.75(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	2.1(Max)
Package Overall Width (mm)	2.1(Max)
Package Overall Height (mm)	0.8(Max)
Seated Plane Height (mm)	0.8(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Very Very Thin Small Outline No Lead Package, Exposed Pad
Package Family Name	SON
Jedec	N/A
Package Outline	Link to Datasheet

• Set-Top Boxes, Gaming Consoles

• Home Theater and Entertainment

• Desktops, Notebooks, Ultrabooks

• Printers

• Servers

• Thermostat and Lighting Controls

• Electronic Point of Sale (EPOS)
