• Scalable CMOS amplifier for low-cost applications
|
• Rail-to-rail input and output
|
• Low input offset voltage: ±0.4 mV
|
• Unity-gain bandwidth: 1 MHz
|
• Low broadband noise: 27 nV/√Hz
|
• Low input bias current: 5 pA
|
• Low quiescent current: 60 µA/Ch
|
• Unity-gain stable
|
• Internal RFI and EMI filter
|
• Operational at supply voltages as low as 1.8 V
|
• Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
|
• Extended temperature range: –40°C to 125°C
|
|
| CATALOG |
TLV9001IDBVR COUNTRY OF ORIGIN
|
TLV9001IDBVR PARAMETRIC INFO
|
TLV9001IDBVR PACKAGE INFO
|
TLV9001IDBVR MANUFACTURING INFO
|
TLV9001IDBVR PACKAGING INFO
|
TLV9001IDBVR ECAD MODELS
|
TLV9001IDBVR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Philippines
|
China
|
Malaysia
|
|
| PARAMETRIC INFO |
| Manufacturer Type |
Low Power Amplifier |
| Type |
Low Power Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
1.8 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
80 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Quiescent Current (mA) |
0.077@5.5V |
| Minimum Dual Supply Voltage (V) |
±0.9 |
| Typical Gain Bandwidth Product (MHz) |
1 |
| Maximum Input Offset Voltage (mV) |
1.6@5V |
| Maximum Dual Supply Voltage (V) |
±2.75 |
| Maximum Operating Supply Voltage (V) |
±2.75|5.5 |
| Minimum CMRR (dB) |
63 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
60 to 65 |
| Typical Voltage Gain (dB) |
130 |
| Typical Slew Rate (V/us) |
2@5V |
| Typical Input Offset Current (uA) |
0.000002@5.5V |
| Typical Settling Time (ns) |
3000 |
| Typical Output Current (mA) |
40 |
| Typical Input Noise Voltage Density (nV/rtHz) |
30@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.023@5V |
| Typical Input Bias Current (uA) |
0.000005@5V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single|Dual |
| Typical Output Resistance (Ohm) |
1200 |
| Input Offset Voltage Drift (uV/°C) |
0.6(Typ) |
|
|
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

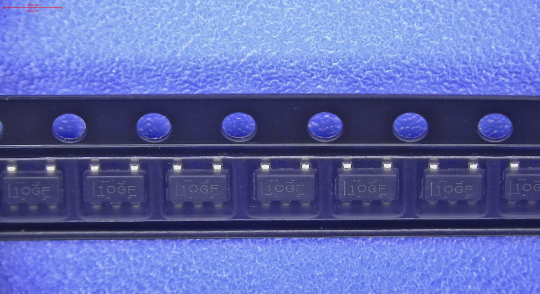

| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7.09 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|

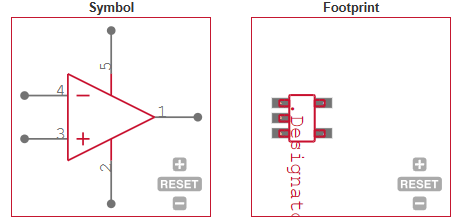

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Sensor signal conditioning |
| • Power modules |
| • Active filters |
| • Low-side current sensing |
| • Smoke detectors |
| • Motion detectors |
| • Wearable devices |
| • Large and small appliances |
| • EPOS |
| • Barcode scanners |
| • Personal electronics |
| • HVAC: heating, ventilating, and air conditioning |
| • Motor control: AC induction |
| |
