• Rail-to-rail input and output
|
• Low input offset voltage: ±0.3 mV
|
• Unity-gain bandwidth: 10 MHz
|
• Low broadband noise: 10 nV/√Hz
|
• Low input bias current: 0.5 pA
|
| • Low quiescent current: 538 µA
|
| • Unity-gain stable |
| • Internal RFI and EMI filter |
| • Operational at supply voltages as low as 1.8 V |
| • Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance |
| • Shutdown version: TLV906xS |
| • Extended temperature range: –40°C to 125°C
|
|
| CATALOG |
TLV9062IDGKR COUNTRY OF ORIGIN
|
TLV9062IDGKR PARAMETRIC INFO
|
TLV9062IDGKR PACKAGE INFO
|
TLV9062IDGKR MANUFACTURING INFO
|
TLV9062IDGKR PACKAGING INFO
|
TLV9062IDGKR ECAD MODELS
|
TLV9062IDGKR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
| Thailand |
| China |
|
PARAMETRIC INFO
|
| Manufacturer Type |
General Purpose Amplifier |
| Type |
General Purpose Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
1.8 |
| Number of Channels per Chip |
2 |
| Process Technology |
CMOS |
| Minimum PSRR (dB) |
103.1(Typ) |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Output Type |
CMOS |
| Maximum Quiescent Current (mA) |
1.5@5.5V |
| Typical Gain Bandwidth Product (MHz) |
10 |
| Maximum Input Offset Voltage (mV) |
1.6@5V |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum CMRR (dB) |
57 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
50 to 60 |
| Typical Voltage Gain (dB) |
130 |
| Typical Slew Rate (V/us) |
6.5@5V |
| Typical Input Offset Current (uA) |
0.00000005@5.5V |
| Typical Settling Time (ns) |
1000 |
| Typical Input Noise Voltage Density (nV/rtHz) |
16@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.023@5.5V |
| Typical Input Bias Current (uA) |
0.0000005@5.5V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended |
| Power Supply Type |
Single |
|
|
PACKAGE INFO
|
| Supplier Package |
VSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
5.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Matte Sn|Au|AuAg |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

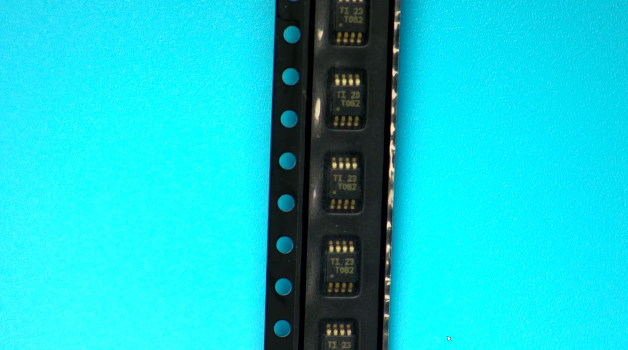

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

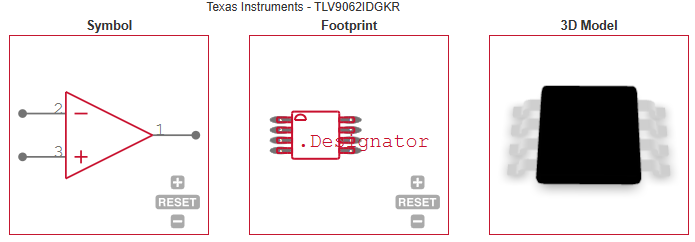

ECAD MODELS
|
|
|
APPLICATIONS
|
• E-bikes
|
| • Smoke detectors
|
• HVAC: heating, ventilating, and air conditioning
|
• Motor control: AC induction
|
• Refrigerators
|
| • Wearable devices |
| • Laptop computers |
| • Washing machines |
| • Sensor signal conditioning |
| • Power modules |
| • Barcode scanners |
| • Active filters |
| • Low-side current sensing
|
| |
