• AEC-Q100 qualified with the following results:
– Temperature grade 1: −55°C to +125°C
operating temperature range
– HBM ESD component classification level 2
– CDM ESD component classification level C5
|
• Functional Safety-Capable
– Documentation available to aid functional safety
system design
|
| • Digital output: SMBus™, two-wire, and I2C
interface compatibility |
| • Resolution: 9 to 12 bits, user-selectable |
• Accuracy:
– ±1°C (typical) from –55°C to 125°C
– ±2°C (maximum) from –55°C to 125°C |
| • Low quiescent current: 45-μA, 0.1-μA standby |
| • Wide supply range: 2.7 V to 5.5 V |
| • TMP100-Q1 features two address pins |
| • TMP101-Q1 features one address pin and an
ALERT pin
|
| • 6-pin SOT-23 package |
|
| CATALOG |
| TMP101NAQDBVRQ1 COUNTRY OF ORIGIN |
| TMP101NAQDBVRQ1 PARAMETRIC INFO |
| TMP101NAQDBVRQ1 PACKAGE INFO |
| TMP101NAQDBVRQ1 MANUFACTURING INFO |
| TMP101NAQDBVRQ1 PACKAGING INFO |
| TMP101NAQDBVRQ1 ECAD MODELS |
| TMP101NAQDBVRQ1 FUNCTIONAL BLOCK DIAGRAM |
| TMP101NAQDBVRQ1 APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Function |
Temp Sensor |
| Interface Type |
Serial (2-Wire, I2C, SMBus) |
| Resolution (bit) |
12 |
| Output Type |
Digital |
| Module/IC Classification |
IC |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Operating Temperature (°C) |
-40 to 125 |
| Operating Range |
-40°C to 125°C |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (uA) |
75 |
| Accuracy |
±1°C |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Output Driver |
Open Drain |
| Operating Supply Voltage (V) |
2.7 to 5.5 |
| Minimum Storage Temperature (°C) |
-60 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
| |

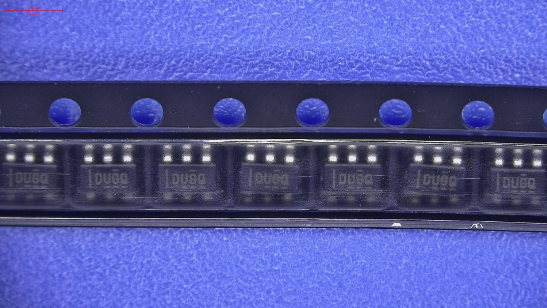

| PACKAGING INFO |
| Packaging Suffix |
DBVR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
| |

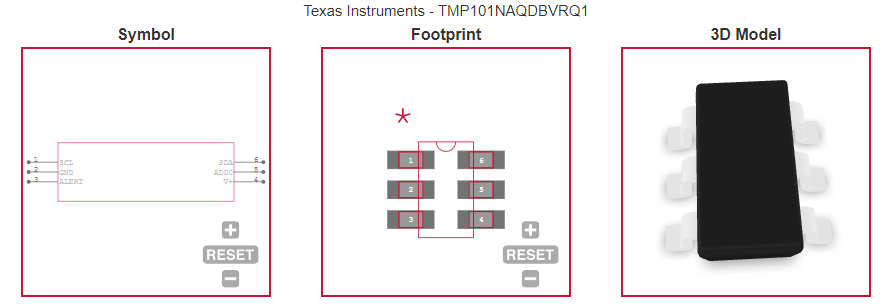

| ECAD MODELS |
 |
|

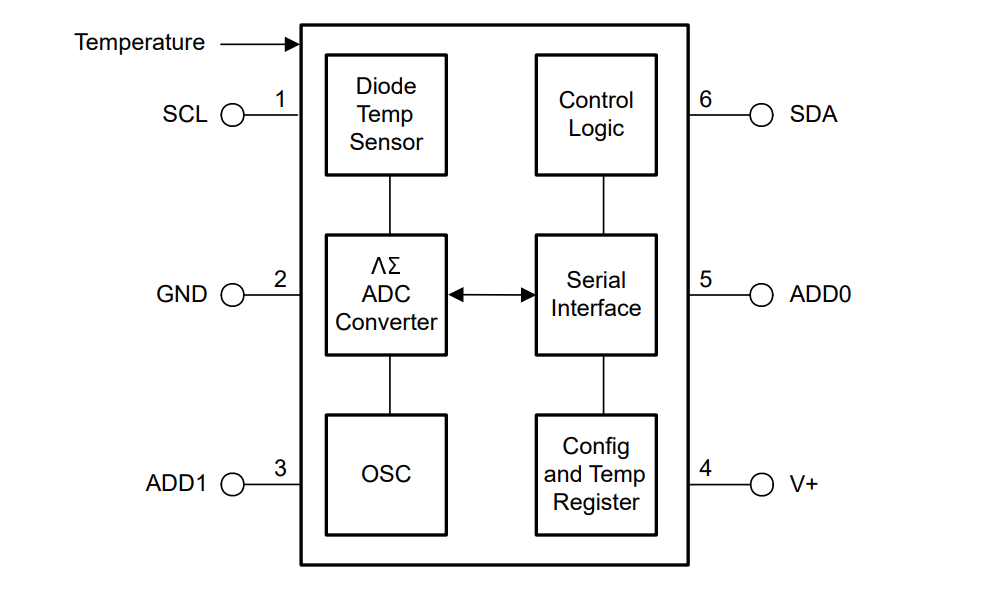

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS
|
| • Power-supply temperature monitoring |
| • Battery management |
| • Thermostat controls |
• Automotive:
– Head unit
– Cluster
– Body electronics
– Lighting |
|
