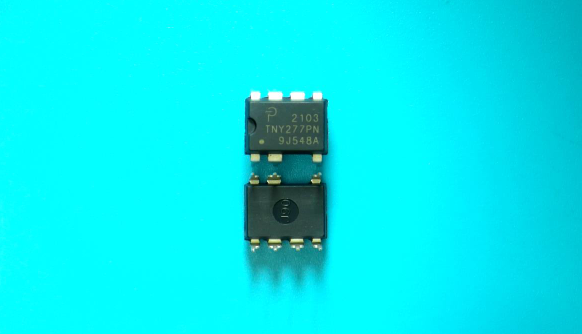

TNY277PN COUNTRY OF ORIGIN
|
TNY277PN PARAMETRIC INFO
|
TNY277PN PACKAGE INFO
|
TNY277PN MANUFACTURING INFO
|
TNY277PN PACKAGING INFO
|
TNY277PN APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Topology |
Off-Line Switcher |
| Soft Start Option |
No |
| Switching Frequency (kHz) |
140 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
PDIP-C |
| Pin Count |
7 |
| PCB |
7 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
9.83(Max) |
| Package Width (mm) |
6.6(Max) |
| Package Height (mm) |
3.68(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.56(Min) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Chargers/adapters for cell/cordless phones, PDAs, digital
cameras, MP3/portable audio, shavers, etc.
|
| • PC Standby and other auxiliary supplies |
| • DVD/PVR and other low power set top decoders |
| • Supplies for appliances, industrial systems, metering, etc. |
|
|
| |
