• Wide 7-V to 30-V Supply Voltage Operation | ||||||||||||||||||||||||||||||||||||||||||
• Stereo (2 x BTL) and Mono (1 x PBTL) Operation | ||||||||||||||||||||||||||||||||||||||||||
• Output Power at 10% THD+N – 105-W Stereo into 4 Ω in BTL Configuration – 112-W Stereo into 3 Ω in BTL Configuration – 208-W Mono into 2 Ω in PBTL Configuration |
||||||||||||||||||||||||||||||||||||||||||
• Output Power at 1% THD+N – 88-W Stereo into 4 Ω in BTL Configuration – 100-W Stereo into 3 Ω in BTL Configuration – 170-W Mono into 2 Ω in PBTL Configuration |
||||||||||||||||||||||||||||||||||||||||||
• 5-V Gate Drive or Built-in LDO for Optional SingleSupply Operation | ||||||||||||||||||||||||||||||||||||||||||
• Closed-Loop Feedback Design – Signal Bandwidth up to 100 kHz for HighFrequency Content From HD Sources – 0.02% THD+N at 1 W into 4 Ω – 60-dB PSRR (BTL, No Input Signal) – <75-µV Output Noise (A-Weighted) – >108-dB SNR (A-Weighted) – AD or HEAD Modulation Schemes |
||||||||||||||||||||||||||||||||||||||||||
• Low-Power Operating Modes – Standby Modes: Mute and < 1 mA Shutdown – Low Idle-Current HEAD Modulation Scheme – Single-Channel BTL Operation |
||||||||||||||||||||||||||||||||||||||||||
• Multiple Input Options to Simplify Pre-Amp Design – Differential or Single-Ended Analog Inputs – Selectable Gains: 18 dB, 24 dB, 30 dB, 34 dB |
||||||||||||||||||||||||||||||||||||||||||
• Integrated Protection: Undervoltage, Overvoltage, Cycle-by-cycle Current Limit, Short Circuit, Clipping Detection, Overtemperature Warning and Shutdown, and DC Speaker Protection | ||||||||||||||||||||||||||||||||||||||||||
• 90% Efficient Class-D Operation (4 Ω) | ||||||||||||||||||||||||||||||||||||||||||
• Pin-Compatible Family of Devices with Voltage and Power-Level Options | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
CATALOG | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR MANUFACTURING INFO | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR ECAD MODELS | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR FUNCTIONAL BLOCK DIAGRAMS | ||||||||||||||||||||||||||||||||||||||||||
TPA3221DDVR APPLICATIONS | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||
Taiwan (Province of China) | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
MANUFACTURING INFO | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||

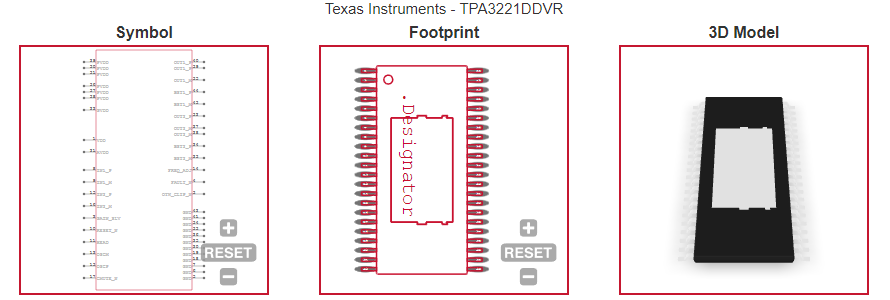

ECAD MODELS | ||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
FUNCTIONAL BLOCK DIAGRAMS | ||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
APPLICATIONS | ||||||||||||||||||||||||||||||||||||||||||
• Wireless and Powered Speakers | ||||||||||||||||||||||||||||||||||||||||||
• Soundbars | ||||||||||||||||||||||||||||||||||||||||||
• Subwoofers | ||||||||||||||||||||||||||||||||||||||||||
• Bookshelf Stereo Systems | ||||||||||||||||||||||||||||||||||||||||||
• Professional and Public Address (PA) Speakers | ||||||||||||||||||||||||||||||||||||||||||
