• 33-mΩ (5-V Input) High-Side MOSFET Switch
|
• Short-Circuit and Thermal Protection
|
• Overcurrent Logic Output
|
• Operating Range . . . 2.7 V to 5.5 V
|
• Logic-Level Enable Input
|
| • Typical Rise Time . . . 6.1 ms
|
| • Undervoltage Lockout |
| • Maximum Standby Supply Current . . . 10 μA |
| • No Drain-Source Back-Gate Diode |
| • Available in 8-Pin SOIC and PDIP Packages |
| • Ambient Temperature Range, –40°C to 85°C |
| • 2-kV Human-Body-Model, 200-V
Machine-Model ESD Protection |
|
| CATALOG |
TPS2021D COUNTRY OF ORIGIN
|
TPS2021D PARAMETRIC INFO
|
TPS2021D PACKAGE INFO
|
TPS2021D MANUFACTURING INFO
|
TPS2021D PACKAGING INFO
|
TPS2021D ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| China |
| Mexico |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
USB Power Switch |
| Number of Switches |
1 |
| Minimum Input Voltage (V) |
2.7 |
| Maximum Input Voltage (V) |
5.5 |
| Current Limit (A) |
0.9 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Enable Logic |
Active Low |
| Supply Current (mA) |
0.075 |
| Typical Rise Time (us) |
8600 |
| Minimum Output Current (A) |
0 |
| Typical Fall Time (us) |
3400 |
| Number of Outputs |
1 |
| Typical Turn-On Delay Time (us) |
20000(Max) |
| Operating Supply Voltage Range (V) |
2.7 to 5.5 |
| Typical Turn-Off Delay Time (us) |
40000(Max) |
| Output Voltage Range (V) |
-0.3 to 6.3 |
| Typical UVLO Threshold (V) |
2.5(Max) |
| Maximum Power Dissipation (mW) |
725 |
| Switch On Resistance (mOhm) |
37 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

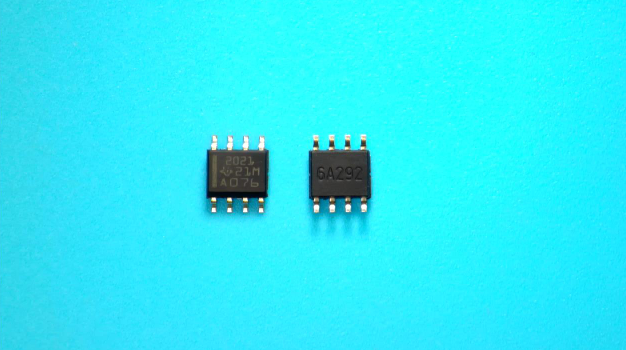

PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
75 |
| Packaging Document |
Link to Datasheet |
|
|

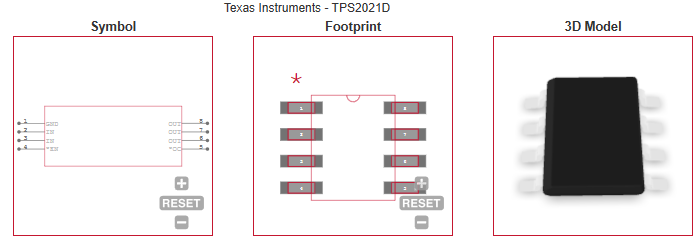

ECAD MODELS
|
|
|
